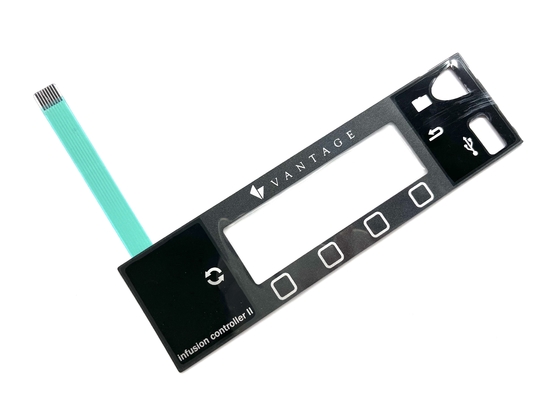

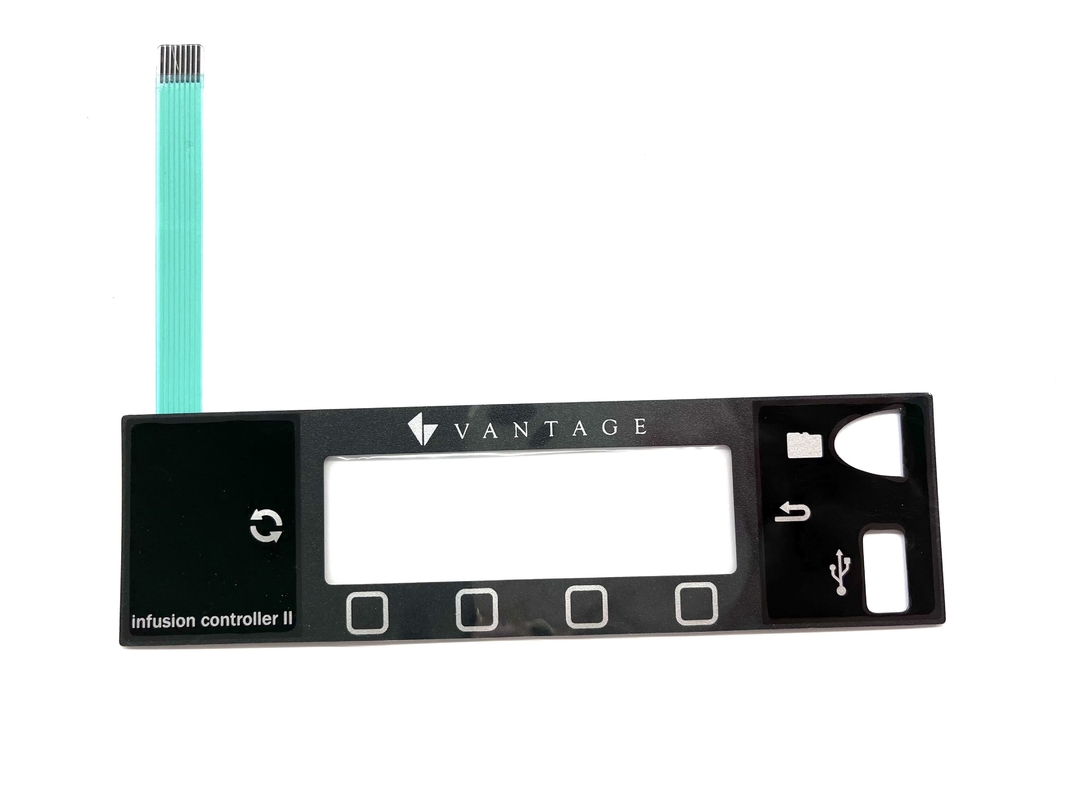

Full Automatic Keypad Membrane Switch Energy Saving With 3M Adhesive
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 220-009 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T, PAYPAL |
| Supply Ability: | 10000 +pcs +A Month |
|
Detail Information |
|||
| Material: | PET Or PC | Color: | Matching Color To Panton Matching Or RAL Or CMYK Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Metal Dome Or Embossing Dome | Size: | Custom Design Any Size Or Shape Based On Client Requetment |
| Used In: | Energy-saving Luminaire | Storage Temperature: | -40℃ To 70℃ |
| Operating Temperature: | -40℃ To 70℃ | Contact Fingers: | Silver And Carbon |
| Life Cycle: | 1 Million Times | Printing: | Silk Screen Printing |
| Type: | Flexible | Conductor: | Printed Silver |
| Insulation Resistance: | > 100MΩ | Operating Voltage: | ≤ 50V DC |
| Highlight: | Full Automatic Keypad Membrane Switch,Full Automatic standard membrane switch,Energy Saving Keypad Membrane Switch |
||
Product Description
Full Automatic Keypad Membrane Switch Energy Saving With 3M Adhesive
Product Specifications
| Attribute | Value |
|---|---|
| Material | PET or PC |
| Color | Matching color to Panton matching or RAL or CMYK or samples |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM or 0.5MM |
| Adhesive | 3M adhesive or other request |
| Button type | Metal dome or Embossing dome |
| Size | Custom design any size or shape based on client requirement |
| Used in | Energy-saving luminaire |
| Storage Temperature | -40℃ to 70℃ |
| Operating Temperature | -40℃ to 70℃ |
| Contact Fingers | Silver and Carbon |
| Life Cycle | 1 million times |
| Printing | Silk Screen Printing |
| Type | Flexible |
| Conductor | Printed silver |
| Insulation Resistance | > 100MΩ |
| Operating Voltage | ≤ 50V DC |
Customize Design OEM Metal Dome Button Tactile Membrane Switch With 3M Adhesive
Membrane Switch Specification
Overlay Material
Polyester: Highly versatile for embossing, highly resistant to chemicals, better durability, suitable for internal and external use.
Polycarbonate: Wide range of surface finishes and thicknesses, more cost-effective, suitable for internal and external use.
Embossing
Graphic overlay or up circuit can be embossed to insert metal stainless steel domes for good tactile feedback when pressed. Available options:
- Pedestal embossing
- Rim embossing
- Pillow embossing
- Dim embossing
Windows or LCD
For display functions: Printed color windows (red, black, etc.) or transparent finishes windows.
Keys
- Tactile Keys: Metal domes or Poly domes with different diameters and pressure types
- Non-tactile keys: Printed silver spot on the circuit
LEDs
Miniature LEDs available in white, green, red, blue, yellow, orange and other colors.
EL and Sensors or Inductors
EL can light any desired area, and sensors can be used as LEDs.
Cables
Extension of circuit and communication with your device:
- Screen printing conductive silver cable
- Copper plated cable / Polyimide or FPC
- PCB cable
Types of Connector
- Zero insertion force (ZIF) with 0.5MM, 1.0MM, 1.25MM pitch
- Female connector with 2.54MM pitch
- Male connector
Shielding
- Gasket seal/Waterproof: Protects conductors against humidity and splashes
- EMI/RFI/ESD Shielding: Uses Aluminum foil shielding or clear ITO electrical conductive polyester
Rear Adhesive
Mostly uses 3M double-side mounting glue (USA brand). Also accepts others such as Lohmann.
Back Plate
Available in Aluminum, Polycarbonate, Acrylic or PMMA.
Matching Color
PMS or RAL is best, CMYK or RGB also acceptable if PMS or RAL can be supplied.
Standard Tolerances
+/-0.2MM
Membrane Switch Performance Index
| Category | Parameter | Specification |
|---|---|---|
| Environmental | Operating Temperature | -40°C to +80°C (-40°to 176°F) |
| Storage Temperature | -40°C to +85°C (-40°to 185°F) | |
| Humidity | 40°C, 90% to 95% for 240 hours | |
| Mechanical | Actuation Force | Non-tactile 60g to 300g (2oz to 10oz) Tactile 150g to 400g (6oz to 14oz) |
| Mechanical | Switch Stroke | Non-tactile 0.1 to 0.5mm Tactile 0.6 to 1.5mm |
| Mechanical | Life Expectancy | Non-tactile >5 million actuations Tactile >1 million actuations |
| Electrical | Operating Voltage | 35 volts maximum |
| Operating Current | 10 micro amps to 100 milliamps, resistive | |
| Operating Power | 1 watt maximum | |
| Circuit Resistance | 10 ohms to 500 ohms, dependent on size and layout | |
| Insulation Resistance | 100M ohms at 100V DC | |
| Contact Bounce | ≤ 5 milliseconds |
