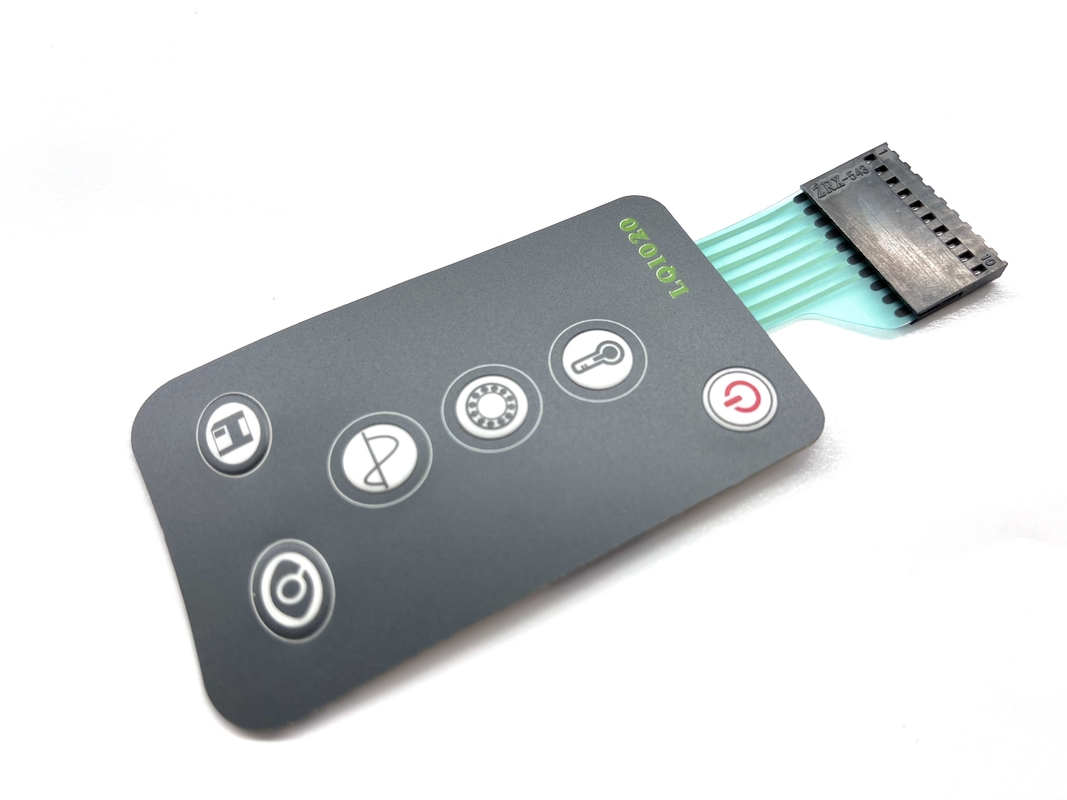

0.8mm-1.5mm Thickness Membrane Touch Switch Durable With 2.54MM Pitch Female Connector
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 0613-002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 15000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone Or Other Request | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM,0.3MM Pith | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Poly Dome , Metal Snap Dome, Flat Button | Size: | Custom Design |
| Operating Temperature: | -20°C To 120°C | Printing Method: | Screen Printing,digital Printing |
| Total Thickness: | 0.8mm-1.5mm | Connector Type: | ZIF Connector Or Female Connector |
| Highlight: | 0.8mm Thickness Membrane Touch Switch,0.8mm Thickness standard membrane switch,Durable Membrane Touch Switch |
||
Product Description
0.8mm-1.5mm Thickness Membrane Touch Switch Durable With 2.54MM Pitch Female Connector
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate, silicone or other request |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM or 0.5MM, 0.3MM pitch |
| Adhesive | 3M adhesive or other request |
| Button type | Poly dome, Metal snap dome, flat button |
| Size | Custom design |
| Operating Temperature | -20°C to 120°C |
| Printing Method | Screen printing, digital printing |
| Total Thickness | 0.8mm-1.5mm |
| Connector type | ZIF connector or female connector |
Product Description
Custom Key Pad Instrument Membrane Control Panel With 2.54MM Pitch Female Connector
Function: Instrument membrane switches are a type of user interface that allow for control and input on various electronic devices and instruments.
Construction: Composed of two flexible plastic layers (often polyester or polycarbonate) separated by a spacer material with conductive traces.
Durability: Designed to withstand repeated use in industrial, medical, and consumer electronics applications.
Benefits: Thin profile, tactile feedback, water/dust resistance, and high customizability.
Applications: Control panels for medical equipment, appliances, industrial machinery, handheld devices, and automotive dashboards.
Membrane Switch Specifications
- Material: Polyester (chemical resistant, durable) or Polycarbonate (cost-effective, various finishes)
- Embossing: Rim, pillow, dim, or pedestal embossing for tactile feedback
- Windows: Print colors or transparent finishes for displays
- Keys/Buttons: Tactile (metal/poly dome) or non-tactile (silver printing spot)
- Embedded LEDs: Miniature LEDs in various colors (white, yellow, orange, green, red)
- Cable: Printed circuit extension for device communication
- Connectors: ZIF, female, or male connectors
- Shielding: Aluminum foil or ITO conductive polyester for EMI/RFI/ESD protection
- Adhesive: 3M double-side glue standard
- Backplate: Aluminum, polycarbonate or acrylic options
Ordering Process
- Send drawings, specifications, or photos of your product
- Confirm order details and approve artwork before sampling
- Sample lead time: 7 business days
- Mass production: 7-10 business days (varies by quantity and complexity)
Our Services
24-hour response to inquiries
Custom design services (OEM/ODM)
Professional English support
Engineering solutions from trained professionals
Quality assurance with testing and short lead times
Product Images
About ShenZhen TaiDa Membrane Switch CO.,LTD
With over 15 years of experience, we specialize in designing and manufacturing membrane switches, graphic overlays, and adhesive labels for industrial, electronics, appliances, and medical equipment applications.
Factory Strength
- 2000+ square meter facility with 70+ employees
- Dedicated R&D department for continuous improvement
- Efficient manufacturing processes for fast delivery
- 20% of workforce dedicated to quality control
- Global customer base with strong after-sales support
