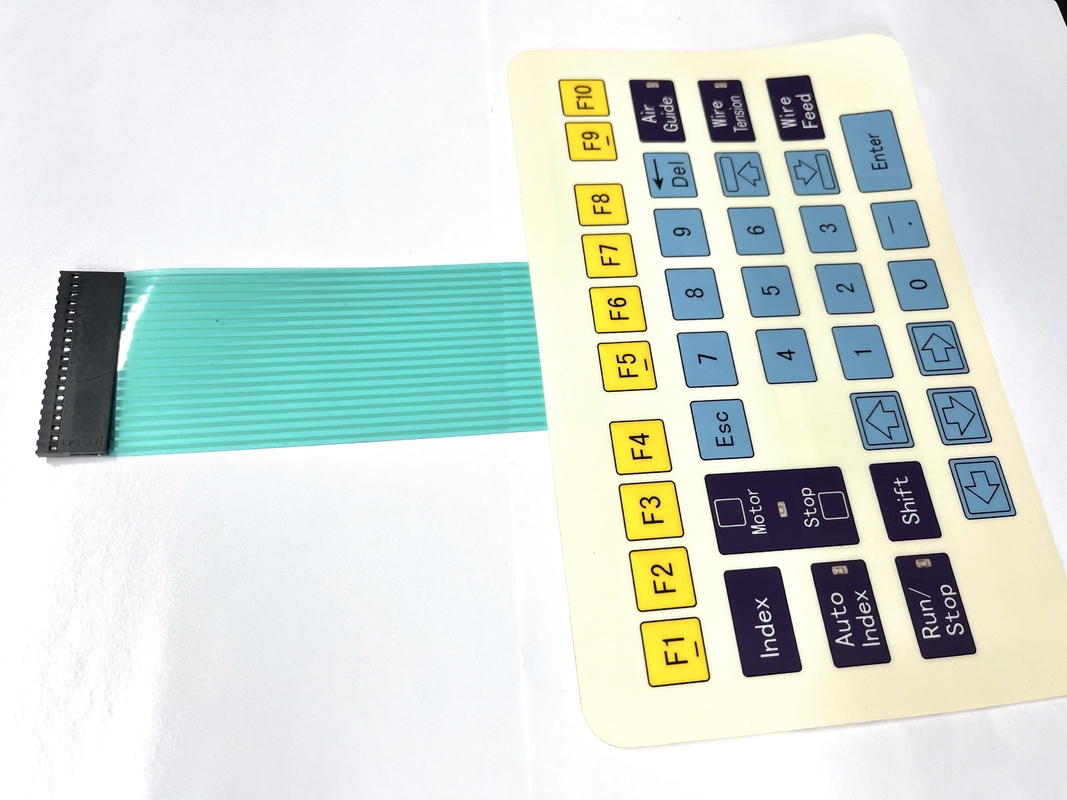

Industrial Polyester Tactile Membrane Switch 2.54MM Pitch With Flex Adhesive Layer
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 0613-005 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 9000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone Or Other Request | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM,0.3MM Pith | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Metal Dome, | Application: | Industrial Machinery Or Other Custom Design |
| Printing Method: | Screen Printing,digital Printing | Connector Type: | ZIF Connector , Female Or Male Connector |
| LED Type: | 0805,0603 | LED Color: | Red ,blue ,white Or Other Custom Design |
| Highlight: | 2.54MM Pitch Tactile Membrane Switch,Polyester Tactile Membrane Switch,2.54MM Pitch Tactile Dome Switch |
||
Product Description
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate, silicone or other request |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM or 0.5MM, 0.3MM pitch |
| Adhesive | 3M adhesive or other request |
| Button type | Metal dome |
| Application | Industrial Machinery or other custom design |
| Printing Method | Screen printing, digital printing |
| Connector type | ZIF connector, female or male connector |
| LED type | 0805, 0603 |
| LED color | Red, blue, white or other custom design |
Industrial Machinery Polyester Tactile Dome Membrane Keyboard With Flex Adhesive Layer
- LED Integration: One or more LEDs integrated into the membrane switch assembly for backlit or edge-lit effects
- Tactile Feedback: Provides distinct "click" sensation when pressed for positive user feedback
- Visual Feedback: Illuminated switch surface indicates status and enhances interface aesthetics
- Customization: Fully customizable in size, shape, and graphics to meet specific application requirements
Overlay material (Front/Face):
- Polyester: Highly versatile for embossing, chemical resistant, durable for internal/external use
- Polycarbonate: Cost-effective with wide range of surface finishes, suitable for internal/external use
Embossing Options: Graphic overlay or up circuit can be embossed to accommodate metal domes
- Pedestal embossing
- Rim embossing
- Pillow embossing
- Dim embossing
Windows/LCD: Printed color windows or transparent finishes for display functions
Keys: Tactile (metal/poly domes) or non-tactile (printed silver spot) options
LEDs: Miniature LEDs available in white, green, red, blue, yellow, orange and custom colors
EL and Sensors: EL lighting for any location, sensors can function as LEDs
Cables: Screen printed conductive silver, copper plated, or FPC/PCB board options
Connectors: ZIF (0.3-1.25mm pitch), female/male (2.54mm pitch)
Shielding: Gasket seal for waterproofing or EMI/RFI/ESD protection with aluminum foil/ITO polyester
Adhesive: 3M double-side mounting tape standard (other brands available)
Back Plate: Aluminum, polycarbonate, acrylic or PMMA options
Color Matching: PMS or RAL preferred, CMYK/RGB acceptable
Standard Tolerances: ±0.2mm
- 24-hour response to inquiries
- Custom design services with OEM/ODM support
- Professional English-speaking staff for technical support
- Engineer-developed unique solutions
- Quality-tested products with short lead times
A: To provide an exact quote, we need material specifications, thickness, size, adhesive requirements, printing colors, contact details, quantity, size/shape, and artwork files.
A: Standard packaging includes neutral white boxes and brown cartons. Branded packaging available with authorization.
A: 30% deposit via T/T, with 70% balance paid before delivery after product/package approval.
A: Samples completed in 5 days after drawing confirmation. Mass production completed in 10 days after sample approval (varies by order specifics).
A: Yes, we can manufacture based on your samples or technical drawings, including mold/fixture creation.
A: Samples available from stock with customer covering sample and courier costs.
A: Yes, we conduct 100% testing prior to shipment.
1. We maintain quality and competitive pricing to ensure customer benefit
2. We value every customer relationship and conduct business with integrity
