Clear LED Windows Tactile Metal Dome Switch 6 Layers Polyester With Long Lifespan
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida or custom design |
| Certification: | ISO9001,ROHS,REACH,UL |
| Model Number: | 0615-02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first ,then custom carton |
| Delivery Time: | 5 days for samples ,10 days for batch |
| Payment Terms: | T/T,, Western Union,Paypal |
| Supply Ability: | 50000 pcs a month |
|
Detail Information |
|||
| Led Windows: | Clear ,tinted Or Punching | Color: | PMS ,RAL ,RGB,or CMYK |
|---|---|---|---|
| Material: | Polyester Or Polycarbonate | Adhesive: | 3M Adhesive Or Others |
| Product Type: | Tactile Membrane Switches | Circuit: | Printing Silver Ink On PET Material |
| Tail Contact Pitch: | 2.54MM , | Connector Option: | Female Connector |
| Highlight: | Polyester Tactile Metal Dome Switch,Polyester metal dome switches,Long Lifespan Tactile Metal Dome Switch |
||
Product Description

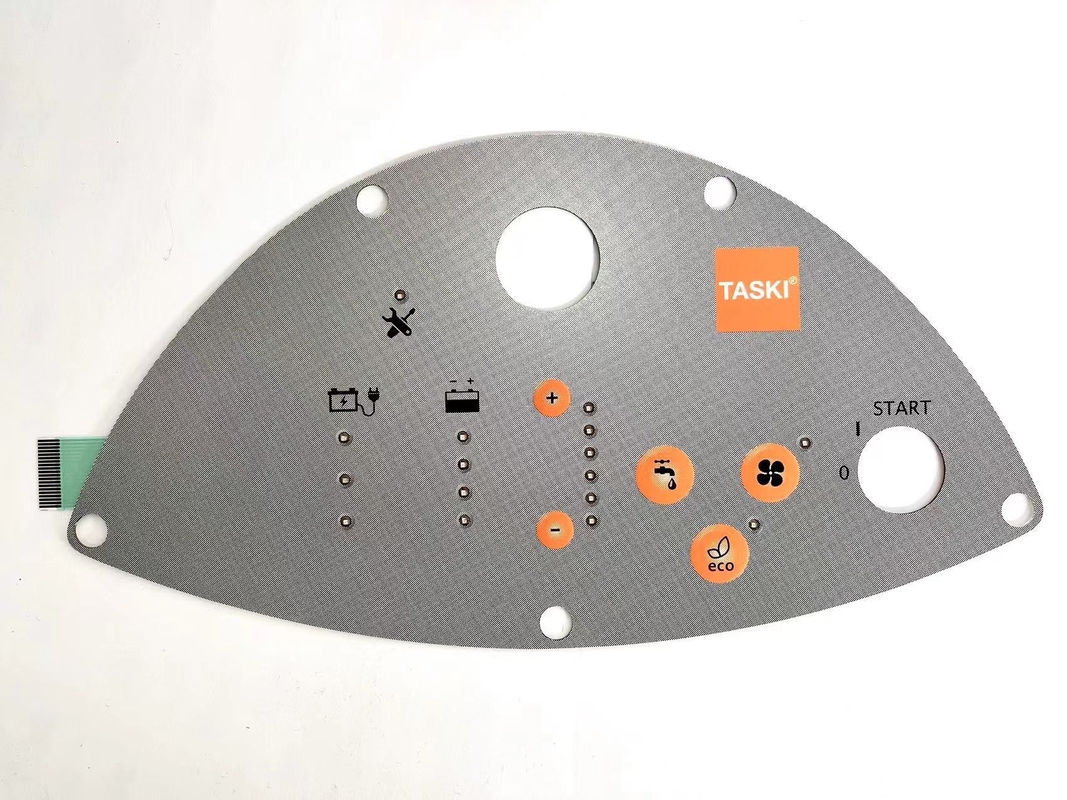

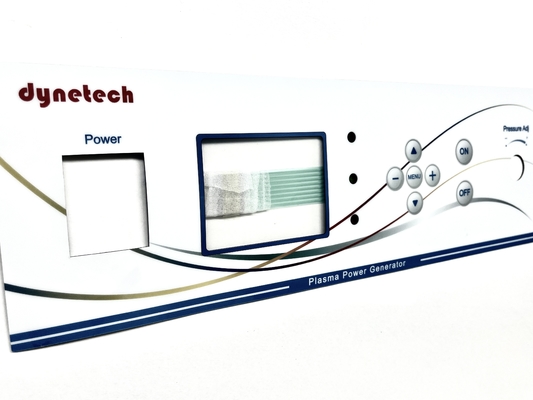

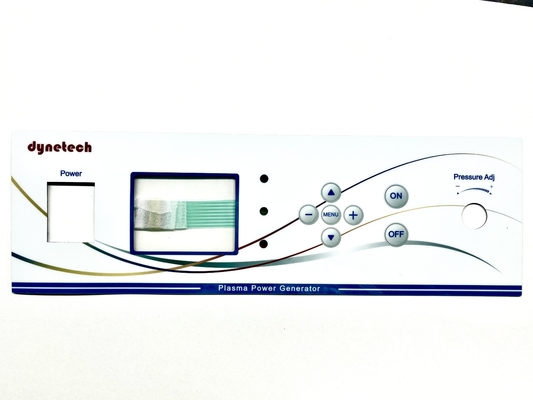

Clear LED Windows Tactile Metal Dome Switch 6 Layers Polyester With Long Lifespan
Product Specifications
| Attribute | Value |
|---|---|
| Led Windows | Clear, tinted or punching |
| Color | PMS, RAL, RGB, or CMYK |
| Material | Polyester or polycarbonate |
| Adhesive | 3M Adhesive or others |
| Product Type | Tactile Membrane Switches |
| Circuit | Printing silver ink on PET material |
| Tail contact pitch | 2.54MM |
| Connector option | Female connector |
Product Overview
Our high-performance tactile membrane switches feature clear LED windows and a durable 6-layer polyester construction with an exceptional lifespan of up to 1 million cycles. Designed for reliability in demanding applications, these switches combine superior functionality with customizable design options.
Key Features
- Nickel or gold plated metal domes for optimal conductivity
- Autotex F150 polyester overlay for chemical and UV resistance
- Customizable LED windows (clear, tinted, or punched)
- 3M adhesive backing for secure installation
- 6-layer structure for enhanced durability
- 500,000-1,200,000 life cycles
- Silver ink circuit printed on PET material
Technical Parameters
| Metal Domes | Nickel, Gold Plated or Others |
| Max Current | 100MA |
| Overlay | Autotex F150 Polyester |
| Structure | 6 Layers |
| Life Expectancy | 1 Million Cycles |
| Travel Distance | 0.1-0.5mm |
Industry Applications
- Medical Equipment: Withstands frequent use and easy to clean
- Industrial Control Systems: Performs in harsh environments
- Aerospace & Defense: Reliable under extreme conditions
- Consumer Electronics: Durable for everyday use
- Automotive: Resistant to moisture and temperature changes
Customization Options
We offer complete customization services for your tactile membrane switch requirements:
- Brand name: Taida or custom design
- Model: 0615-01
- ISO9001 certified manufacturing
- Minimum order: 100 pcs
- Packaging: PE bags + custom cartons
- Delivery: 5 days (samples), 10 days (batch)
- Monthly capacity: 50,000 units
Support & Services
Our technical team provides comprehensive support including product selection, design assistance, and troubleshooting. We offer detailed product documentation and stand behind our products with repair/replacement services when needed.
