Glossy Surface Dome Membrane Switch OEM Customized Industrial Waterproof Membrane Switch
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 0611-008 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 20000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 2.54MM | Adhesive: | 3M Adheisve |
| Button Type: | Metal Snap Dome | Circuit Options: | Silver Plate , |
| Printing Method: | Screen Printing, | Connector Type: | Female Connector, |
| Highlight: | Glossy Surface Dome Membrane Switch,Glossy Surface Waterproof Membrane Switch,Customized Dome Membrane Switch |
||
Product Description
Glossy Surface Dome Membrane Switch OEM Customized Industrial Waterproof Membrane Switch
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate, silicone |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 2.54MM |
| Adhesive | 3M adhesive |
| Button type | Metal snap dome |
| Circuit options | Silver plate |
| Printing Method | Screen printing |
| Connector type | Female connector |
Product Description

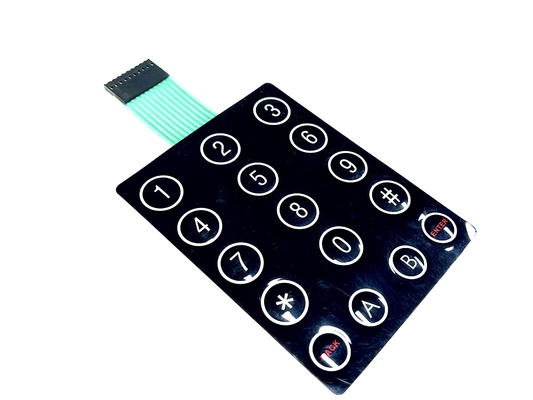

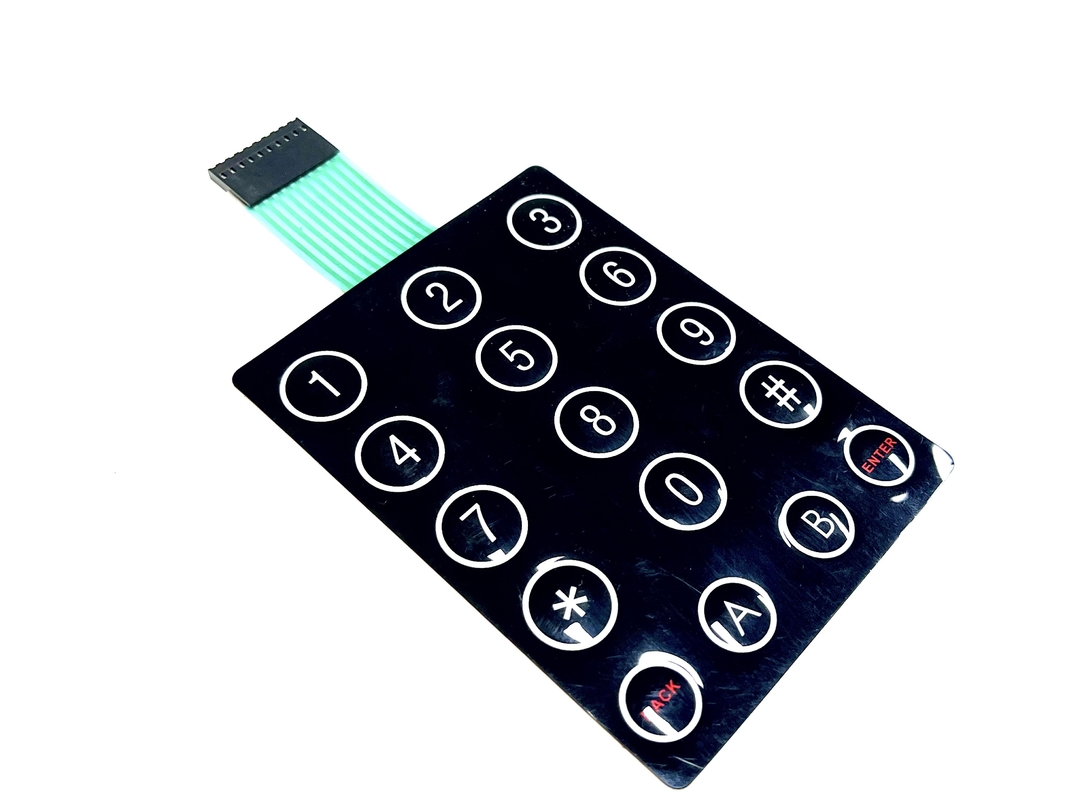

OEM Custom Matrix Design Membrane Tactile Button Keypads With Glossy Surface
A Matrix Metal Dome Switch, also known as a Matrix Switch or Dome Switch Matrix, is a type of input device that utilizes a matrix-based architecture and metal dome switch technology.
Key Features
- Matrix Design: Arranged in a grid-like pattern for compact and efficient layout of multiple switch inputs
- Metal Dome Switches: Provides tactile feedback and actuation mechanism at each intersection point
- Scanning and Encoding: System scans rows and columns to detect pressed switches and translate into input signals
- Flexibility and Scalability: Easily expandable by adding rows and columns to accommodate more inputs
- Cost-Effectiveness: Economical manufacturing solution for applications requiring numerous inputs
Membrane Switch Specifications
- Material Options:
- Polyester - Highly versatile for embossing, chemical resistant, durable for internal/external use
- Polycarbonate - Wide range of surface finishes, cost-effective for internal/external use
- Embossing Options: Rim, pillow, dim, and pedestal embossing for tactile indications
- Windows: Print colors or transparent finishes for display functions
- Keys/Buttons: Tactile (metal dome or poly dome) or non-tactile (silver printing spot)
- Embedded LEDs: Available in multiple colors including white, yellow, orange, green, red
- Connector Types: Zero insertion force (ZIF), female, or male connectors
- Shielding: EMI/RFI/ESD protection with aluminum foil or clear ITO conductive polyester
- Adhesive: 3M double-side glue standard
- Backplate: Available in aluminum, polycarbonate or acrylic
Performance Index
| Category | Parameter | Specification |
|---|---|---|
| Environmental | Operating Temperature | -40°C to +80°C (-40°to 176°F) |
| Storage Temperature | -40°C to +85°C (-40°to 185°F) | |
| Humidity | 40°C, 90% to 95% for 240 hours | |
| Vibration | 20G's max. | |
| Mechanical | Actuation Force (Non-tactile) | 60g to 300g (2oz to 10oz) |
| Actuation Force (Tactile) | 150g to 400g (6oz to 14oz) | |
| Switch Stroke (Non-tactile) | 0.1 to 0.5mm | |
| Switch Stroke (Tactile) | 0.6 to 1.5mm | |
| Life Expectancy | Non-tactile >5 million actuations Tactile >1 million actuations |
|
| Electrical | Operating Voltage | 35 volts maximum |
| Operating Current | 10 micro amps to 100 milliamps, resistive | |
| Operating Power | 1 watt maximum | |
| Circuit Resistance | 10 ohms to 500 ohms, dependent on size and layout | |
| Insulation Resistance | 100M ohms at 100V DC | |
| Dielectric Withstand | >250 VRMs (50-60Hz 1 minute) | |
| Contact Bounce | ≤ 5 milliseconds |
