1.25MM Pitch Tactile Membrane Switch OEM Momentary Push Button With Glossy Surface
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241030-06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 10000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM，1.25MM，2.54MM ,or 0.5MM | Adhesive: | 3M Adheisve |
| Button Type: | Metal Snap Dome | Circuit Options: | Silver Plate , |
| Printing Method: | Screen Printing, | Connector Type: | Female Connector, |
| Led Color: | Custom Design | Size: | Custom Design |
| Highlight: | 1.25MM Pitch Tactile Membrane Switch,1.25MM Pitch push button membrane switch,OEM Tactile Membrane Switch |
||
Product Description
Industrial Tactile Membrane Switch OEM Momentary Push Button With Glossy Surface
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate, silicone |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM, or 0.5MM |
| Adhesive | 3M adhesive |
| Button type | Metal snap dome |
| Circuit options | Silver plate |
| Printing Method | Screen printing |
| Connector type | Female connector |
| LED Color | Custom design |
| Size | Custom design |
Product Description
OEM Customized Design Momentary Push Button Industrial With Glossy Surface
A momentary push button is a type of switch that makes or breaks a connection only while it is being pressed. When you press the button, it activates a circuit; when you release it, the circuit is deactivated.
Common Applications
- Computer Power Buttons: Starts the computer temporarily while pressed
- Control Panels: Used for functions like "start," "stop," or "reset"
- Doorbells: Activates the chime only while pressed
- Automotive: Horns, light switches, and other controls
- Consumer Electronics: Remote controls, toys, and appliances
- Industrial Equipment: Emergency stop buttons, machine controls
Key Considerations
- Electrical Rating: Ensure it can handle the required voltage and current
- Debounce: Mechanical bounce can cause multiple signals; consider using debounce circuitry or software
- Feedback: Visual or tactile feedback (like LED indicators) can enhance user experience
Membrane Switch Specifications
Material - Front/Face Overlay
Polyester: Highly versatile for embossing, resistant to chemicals, better durability, suitable for internal and external use
Polycarbonate: Wide range of surface finishes and thicknesses, more cost-effective, suitable for internal and external use
Key Features
- Embossing: Rim embossing, pillow embossing, dim embossing, pedestal embossing
- Windows: Print colors windows, transparent finishes windows
- Keys/Buttons: Tactile keys (with metal dome or poly dome), Non-tactile (silver printing spot)
- Embedded LEDs: Miniature LED, various colors available
- Cable: Extension of the printed circuit for device communication
- Connector Types: Zero insertion force (ZIF), female connector, male connector
- EMI/RFI/ESD Shielding: Aluminum foil shielding or clear ITO electrical conductive polyester
- Adhesive: Mostly 3M double-side glue
- Backplate: Available in aluminum, polycarbonate or acrylic
Performance Specifications
| Category | Specification |
|---|---|
| Operating Temperature | -40°C to +80°C (-40°to 176°F) |
| Storage Temperature | -40°C to +85°C (-40°to 185°F) |
| Humidity | 40°C, 90% to 95% for 240 hours |
| Vibration | 20G's max. |
| Actuation Force (Non-tactile) | 60g to 300g (2oz to 10oz) |
| Actuation Force (Tactile) | 150g to 400g (6oz to 14oz) |
| Switch Stroke (Non-tactile) | 0.1 to 0.5mm |
| Switch Stroke (Tactile) | 0.6 to 1.5mm |
| Life Expectancy (Non-tactile) | >5 million actuations |
| Life Expectancy (Tactile) | >1 million actuations |
| Operating Voltage | 35 volts maximum |
| Operating Current | 10 micro amps to 100 milliamps, resistive |
| Operating Power | 1 watt maximum |
| Circuit Resistance | 10 ohms to 500 ohms, dependent on size and layout |
| Insulation Resistance | 100M ohms at 100V DC |
| Dielectric Withstand | >250 VRMs (50-60Hz 1 minute) |
| Contact Bounce | ≤ 5 milliseconds |
Our Services
- Reply to your inquiry within 24 working hours
- Custom design available - OEM and ODM welcome
- Experienced staff answer all questions in professional English
- Exclusive solutions provided by our trained engineers
- Quality products with testing and short lead times

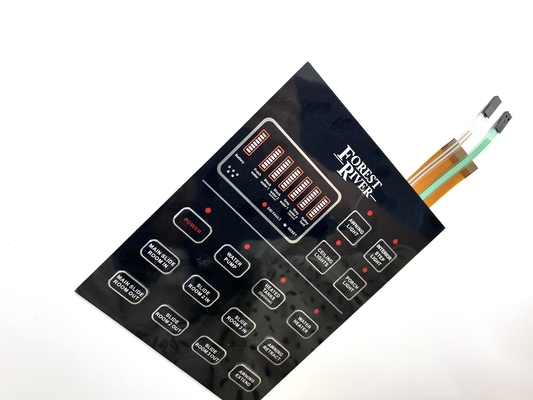

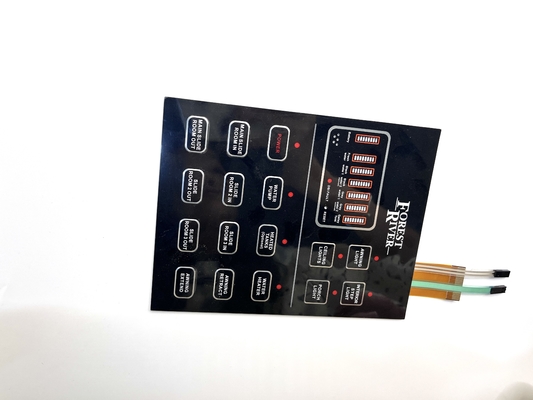

Product Images
