Customized Tactile Membrane Switch Micro 6 Layers With Gold Plated Metal Domes
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida or custom design |
| Certification: | ISO9001 |
| Model Number: | 20241031-08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first ,then custom carton |
| Delivery Time: | 5 days for samples ,10 days for batch |
| Payment Terms: | communication |
| Supply Ability: | 41000 pcs a month |
|
Detail Information |
|||
| Overlay: | Autotex F150 Polyester | Metal Domes: | Nickel Or Gold Plated Or Others |
|---|---|---|---|
| Material: | Polyester Or Polycarbonate | Structure: | 6 Layers |
| Product Type: | Tactile Membrane Switches | Life Expectancy: | 1 Million Cycles |
| Printing Method: | Screen Printing, | Circuit: | Flexible Cable Circuit And Pins |
| Size: | Customized | Overlay Color: | Rich |
| Dome: | Metal Or Poly | Application: | Instrument |
| Highlight: | 6 Layers Tactile Membrane Switch,6 Layers push button membrane switch,Micro Tactile Membrane Switch |
||
Product Description
Customized Tactile Membrane Switch Micro With Gold Plated Metal Domes
Product Specifications
| Attribute | Value |
|---|---|
| Overlay | Autotex F150 Polyester |
| Metal Domes | Nickel Or Gold Plated Or Others |
| Material | Polyester Or Polycarbonate |
| Structure | 6 Layers |
| Product Type | Tactile Membrane Switches |
| Life Expectancy | 1 Million Cycles |
| Printing Method | Screen printing |
| Circuit | Flexible Cable Circuit And Pins |
| Size | Customized |
| Overlay Color | Rich |
| Dome | Metal or poly |
| Application | instrument |
Product Description
Autotex F150 Polyester Micro Push Button Switch With Gold Plated Metal Domes
Types
- Normally Closed (NC): The circuit is closed until the button is pressed.
- Illuminated: Some models have built-in LEDs for visual indication.
- Normally Open (NO): The circuit is open until the button is pressed.
Selection Considerations
- Mounting Type: Through-hole or surface mount options are available.
- Voltage and Current Ratings: Ensure they match your circuit specifications.
- Environmental Conditions: Consider factors like dust and moisture resistance.
Key Features
- Momentary Action: Typically returns to its original position when released.
- Variety of Configurations: Available in different shapes, sizes, and actuation forces.
- Compact Size: Ideal for applications where space is limited.
- Durability: Rated for 1 million+ press cycles.
- Material: Polyester or Polycarbonate
- Max Current: 100MA
- Structure: 6 Layers
Technical Parameters
| Material | Polyester Or Polycarbonate |
| Max Current | 100MA |
| Overlay | Autotex F150 Polyester |
| Metal Domes | Nickel Or Gold Plated Or Others |
| Life Expectancy | 1 Million Cycles |
| Adhesive | 3M Adhesive Or Others |
| Travel Distance | 0.1-0.5mm |
| Circuit | Printing Silver Ink On PET Material |
Applications
These durable tactile membrane switches are ideal for various industrial and consumer applications:
- Industrial Equipment: Machinery controls and manual overrides
- Consumer Electronics: Remote controls, toys, handheld devices
- Automotive: Dashboard controls and panels
- Medical Equipment: Diagnostic and monitoring devices
- Household Appliances: Microwave ovens, washing machines, air conditioners
Customization Options
We offer comprehensive customization services to meet your specific requirements:
- Branding: Taida standard or custom designs
- Model Number: 0615-01 (custom options available)
- Certification: ISO9001 compliant
- Minimum Order: 100 pieces
- Production Capacity: 50,000 pieces/month
- Dome Options: Nickel, gold plated, or other materials
- LED Windows: Clear, tinted, or punched options
- Packaging: PE bags with custom cartons
Lead Times: 5 days for samples, 10 days for production batches
Payment Terms: Negotiable based on order requirements
Payment Terms: Negotiable based on order requirements
Frequently Asked Questions
Q1: What is the brand name of the product?
A1: The brand name of this product is Taida, but we also offer custom design options.
Q2: What is the model number of the product?
A2: The model number of this product is 0615-01.
Q3: Where is the product manufactured?
A3: This product is manufactured in DongGuan, China.
Q4: Does the product have any certifications?
A4: Yes, this product has ISO9001 certification.
Q5: What is the minimum order quantity for this product?
A5: The minimum order quantity for this product is 100 pcs.

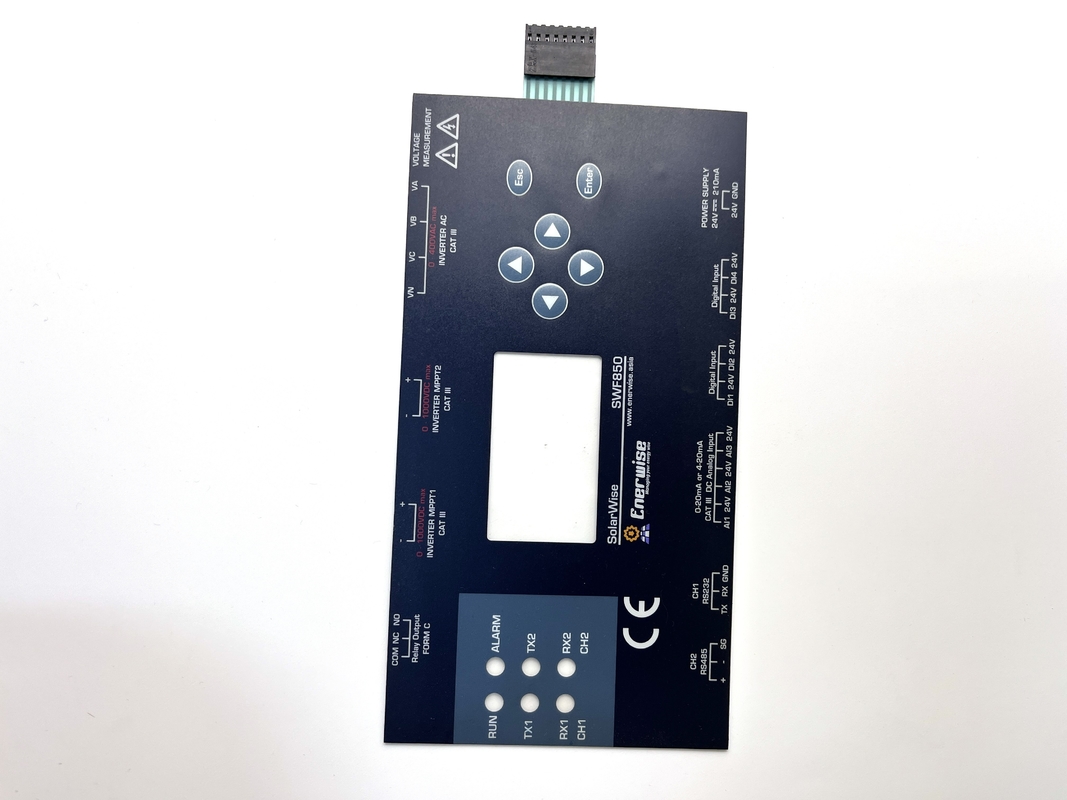

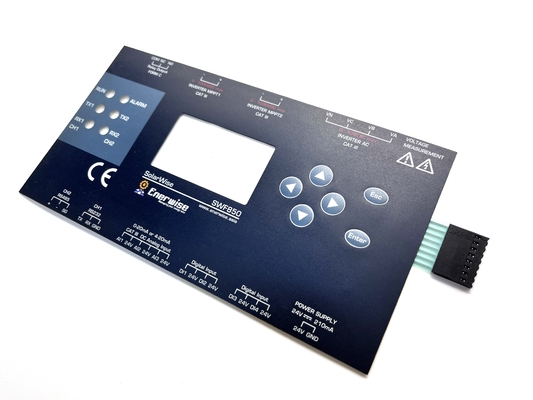

Product Images
