Embeded Flexible Tactile Membrane Switch With Automatic Printing Matrix
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 0611-010 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 10000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Other Request | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM | Adhesive: | 3M Adheisve Or Other |
| Button Type: | Metal Snap Dome | Application: | Car |
| Circuit Option: | PET Circuit Flexible | Printing Method: | Screen Printing , |
| LED Type: | 0805 | LED Window: | Semi-transparent White Or Clear |
| Connector Type: | ZIF Connector | Shape: | Custom Design |
| Highlight: | Embeded Tactile Membrane Switch,Flexible Tactile Membrane Switch,Flexible membrane panel switch |
||
Product Description
Embedded Flexible Tactile Membrane Switch With Automatic Printing Matrix
Product Specifications
| Material | Polyester, Polycarbonate, or custom materials |
| Color Options | Pantone, RAL, CMYK, RGB, or sample matching |
| Pitch of Connect | 1.0MM |
| Adhesive | 3M adhesive or alternatives |
| Button Type | Metal snap dome |
| Application | Automotive |
| Circuit Option | PET circuit flexible |
| Printing Method | Screen printing |
| LED Type | 0805 |
| LED Window | Semi-transparent white or clear |
| Connector Type | ZIF connector |
| Shape | Custom designs available |
Product Description
This embossed metal dome membrane switch combines the benefits of membrane technology with tactile metal dome actuation, delivering enhanced feedback and durability for demanding applications.
Key Features
- Metal Dome Actuation: Provides satisfying tactile "click" feedback with consistent response
- Embossed Design: Raised profile ensures proper dome alignment and actuation
- Layered Construction: Durable polyester/polycarbonate top layer with printed circuit board
- Customizable: Available in various materials, colors, and configurations
Technical Specifications
Electrical Properties
| Operating Voltage | ≤ 50VDC |
| Operating Current | ≤ 100mA |
| Contact Resistance | 0.5 ~ 10Ω |
| Insulation Resistance | ≥ 100MΩ (100VDC) |
Mechanical Properties
| Service Life | > 1 million cycles |
| Actuation Force | 15 ~ 750g |
| Closed Displacement | 0.1 ~ 1.0mm |
| Rebound Time | ≤ 6ms |
Environmental Specifications
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 95% ± 5% RH |
Our Services
24-hour response to inquiries
Custom design services (OEM/ODM available)
Professional engineering support and solutions
Comprehensive quality testing
Competitive lead times

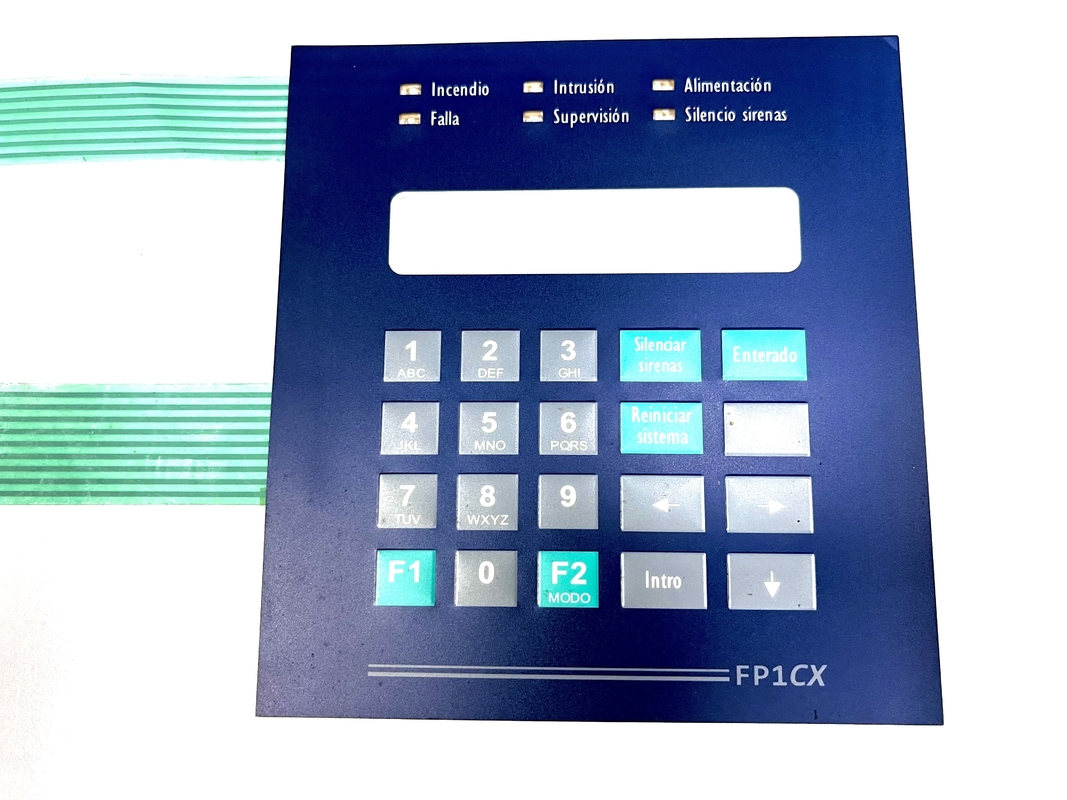

Product Image
