Flexible Membrane Touch Switch Membrane Key Switch UV Stability With Gradient Printing
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 072-025 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 12000 +pcs +a Month |
|
Detail Information |
|||
| Material: | PET Or PC | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Metal Dome Or Embossing Dome | Size: | Custom Design |
| Operating Temperature: | -20°C To 70°C | Operating Current: | ≤100mA |
| Insulation Resistance: | ≥100MΩ | Actuation Force: | 60-300g |
| Life Expectancy: | 1 Million To 5 Million Cycles | Storage Temperature: | -40°C To 85°C |
| Printing Method: | Gradient Dot Printing | Total Thickness: | 0.8mm-1.0mm |
| Highlight: | Flexible Membrane Touch Switch,Flexible Membrane Key Switch,UV Stability Membrane Touch Switch |
||
Product Description
Flexible Membrane Touch Switch Membrane Key Switch UV Stability With Gradient Printing
Product Specifications
| Attribute | Value |
|---|---|
| Material | PET or PC |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM or 0.5MM |
| Adhesive | 3M adhesive or other request |
| Button type | Metal dome or Embossing dome |
| Size | Custom design |
| Operating Temperature | -20°C to 70°C |
| Operating Current | ≤100mA |
| Insulation Resistance | ≥100MΩ |
| Actuation Force | 60-300g |
| Life Expectancy | 1 million to 5 million cycles |
| Storage Temperature | -40°C to 85°C |
| Printing Method | Gradient dot printing |
| Total Thickness | 0.8mm-1.0mm |
Product Description
3M Rear Adhesive Waterproof Backlight Membrane Switch Manufacturers With Gradient Printing
A Gradient Dot Printing Membrane Keypad is a type of membrane switch that features a unique printing technique to create a visual gradient effect on the keypad surface.
The gradient dot printing process can be integrated into the existing membrane switch manufacturing workflows, allowing for cost-effective production of customized gradient-printed keypads.
This product combines the advantages of membrane switch technology with an aesthetically pleasing and visually enhanced design, making it an attractive option for various user interface applications.
Membrane Switch Specification
- Material for front/face overlay:
- Polyester: Highly versatile for embossing, resistant to chemicals, better durability, suitable for internal and external use
- Polycarbonate: Wide range of surface finishes and thicknesses, more cost-effective, suitable for internal and external use
- Embossing: Rim embossing, pillow embossing, dim embossing, pedestal embossing
- Windows for display function: Print colors windows, transparent finishes windows
- Keys/buttons: Tactile keys (with metal dome or poly dome), Non-tactile (silver printing spot)
- Embedded LEDs: Miniature LED, available in white, yellow, orange, green, red, etc.
- Cable: Extension of the printed circuit used to communicate with your device
- Types of connector: Zero insertion force (ZIF) connector, Female connector, Male connector
- EMI/RFI/ESD Shielding: Aluminum foil shielding or clear ITO electrical conductive polyester
- Adhesive: Mostly 3M double-side glue
- Backplate: Available in aluminum, polycarbonate or acrylic
Membrane Switch Performance Index
| Category | Specification |
|---|---|
| Environmental | |
| Operating Temperature | -40°C to +80°C (-40°to 176°F) |
| Storage Temperature | -40°C to +85°C (-40°to 185°F) |
| Humidity | 40°C, 90% to 95% for 240 hours |
| Vibration | 20G's max. |
| Mechanical | |
| Actuation Force | Non-tactile 60g to 300g (2oz to 10oz) Tactile 150g to 400g (6oz to 14oz) |
| Switch Stroke | Non-tactile 0.1 to 0.5mm Tactile 0.6 to 1.5mm |
| Life Expectancy | Non-tactile >5 million actuations Tactile >1 million actuations |
| Electrical | |
| Operating Voltage | 35 volts maximum |
| Operating Current | 10 micro amps to 100 milliamps, resistive |
| Operating Power | 1 watt maximum |
| Circuit Resistance | 10 ohms to 500 ohms, dependent on size and layout |
| Insulation Resistance | 100M ohms at 100V DC |
| Dielectric Withstand | >250 VRMs (50-60Hz 1 minute) |
| Contact Bounce | ≤ 5 milliseconds |
How to Order
- Send us the drawing, specification or photo about your product or fill our quotation information table
- Confirm order details and approve our artwork before sample production
- Confirm our sample before mass production
- Order PI will be sent after confirmation
- Arrange payment - we will send artwork for confirmation within 3 days before sample production
- Sample lead time: 7 business days typically
- Mass production lead time: 7-10 business days, depending on production schedule and order quantity
Our Services
- Reply to your inquiry within 24 working hours
- Custom design available - OEM and ODM welcome
- Experienced staff answer all questions in professional English
- Exclusive solutions provided by our professional engineers
- High quality products with testing, good service and short lead times

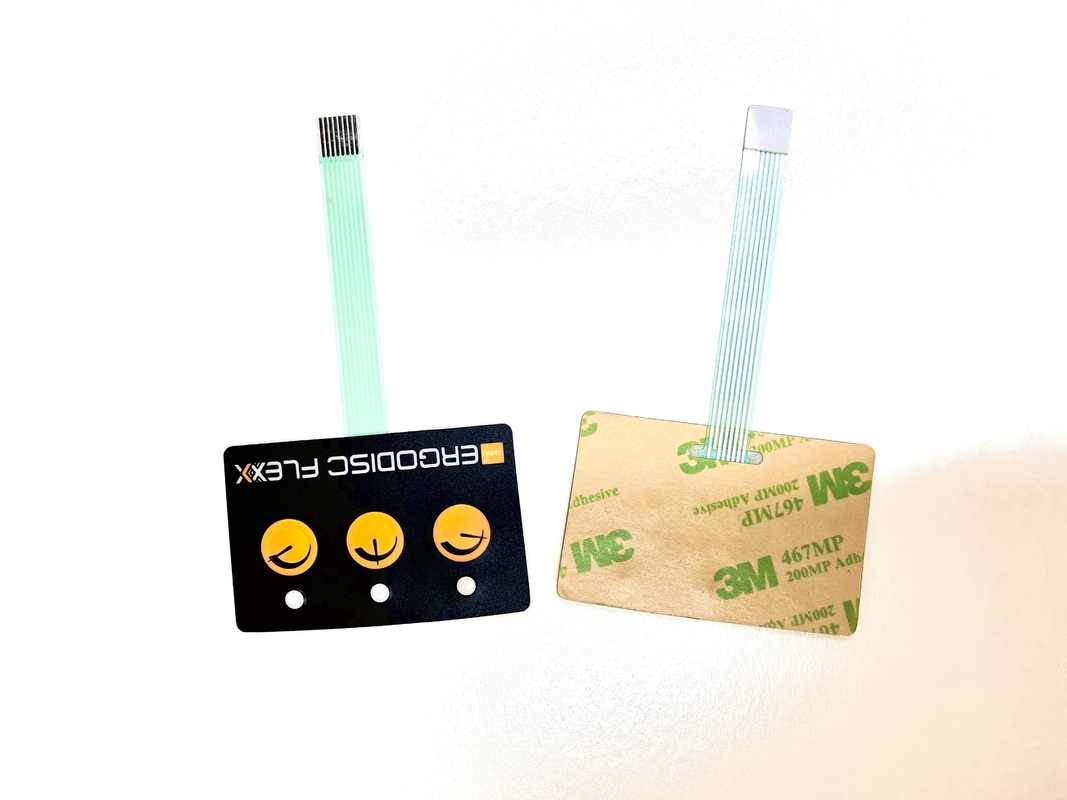

Product Display
