Customized Backlit Membrane Switch Mechanical Keyboard Switch Long Lifespan With EL Backlight
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241105-19 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 80000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Other Request | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.25MM | Adhesive: | 3M Adheisve Or Other |
| Button Type: | Metal Snap Dome | Printing Method: | Screen Printing , |
| Total Thickness: | 0.8mm-1.5mm | LED Color: | Blue ,white ,red Or Other Request |
| LED Type: | 0603or0805 | Shape: | Custom Design |
| Highlight: | Customized Backlit Membrane Switch,Customized Mechanical Keyboard Switch,Long Lifespan Backlit Membrane Switch |
||
Product Description
Customized Backlit Membrane Switch Mechanical Keyboard Switch
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or other request |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 1.25MM |
| Adhesive | 3M adhesive or other |
| Button type | Metal snap dome |
| Printing Method | Screen printing |
| Total Thickness | 0.8mm-1.5mm |
| LED color | Blue, white, red or other request |
| LED type | 0603 or 0805 |
| Shape | Custom design |
Mechanical Switch Types
- Tactile Switches (e.g., Cherry MX Brown) - Provide noticeable bump when actuated
- Clicky Switches (e.g., Cherry MX Blue) - Emit distinct click sound with tactile feedback
- Linear Switches (e.g., Cherry MX Red) - Smooth keystrokes without tactile feedback
Key Features
- Actuation Force: Varies by switch type
- Travel Distance: Standard 2mm for actuation, 4mm for bottoming out
- Lifespan: Rated for 50 million+ keystrokes
Membrane Switch Specifications
Overlay Material
- Polyester: Highly versatile for embossing, chemical resistant, durable
- Polycarbonate: Cost-effective, wide range of surface finishes
Electrical Properties
| Property | Specification |
|---|---|
| Operating voltage | ≤ 50VDC |
| Operating Current | ≤ 100mA |
| Contact resistance | 0.5 ~ 10Ω |
| Insulation resistance | ≥ 100MΩ (100VDC) |
Mechanical Behavior
| Property | Specification |
|---|---|
| Service life | > 1 million cycles |
| Closed displacement | 0.1 ~ 0.4mm (tactile) |
| Force standard | 15 ~ 750g force |
Our Services
- 24-hour response to inquiries
- Custom design available (OEM/ODM welcome)
- Professional English support
- Engineer-provided unique solutions
- Quality testing and short lead times

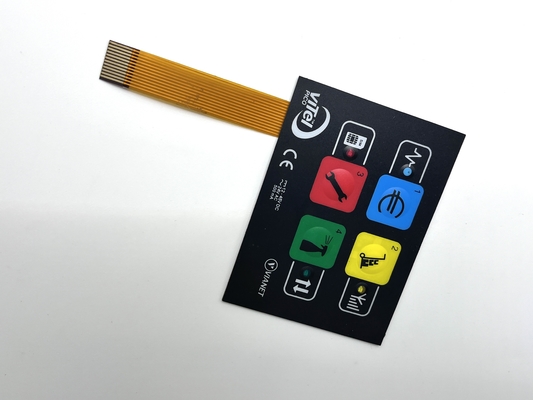

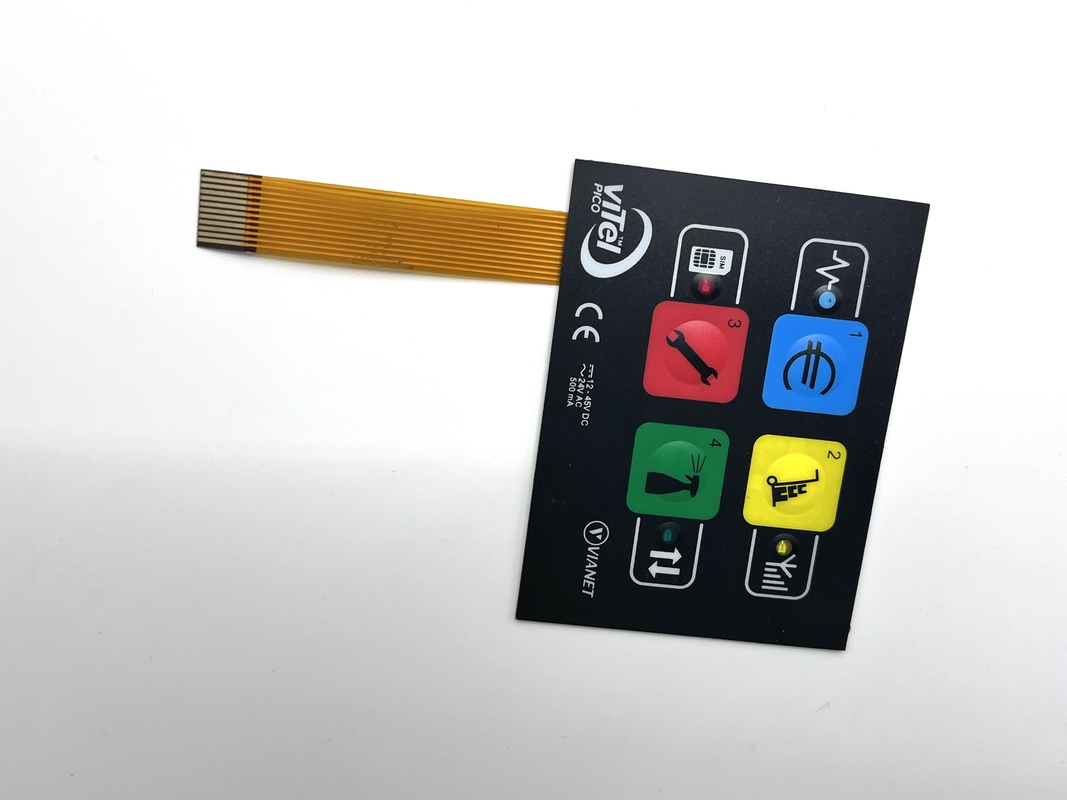

Product Images
