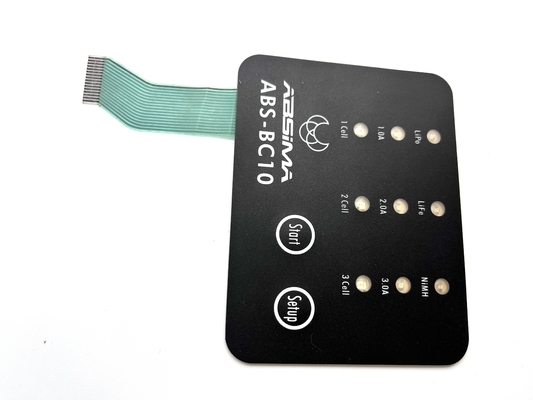

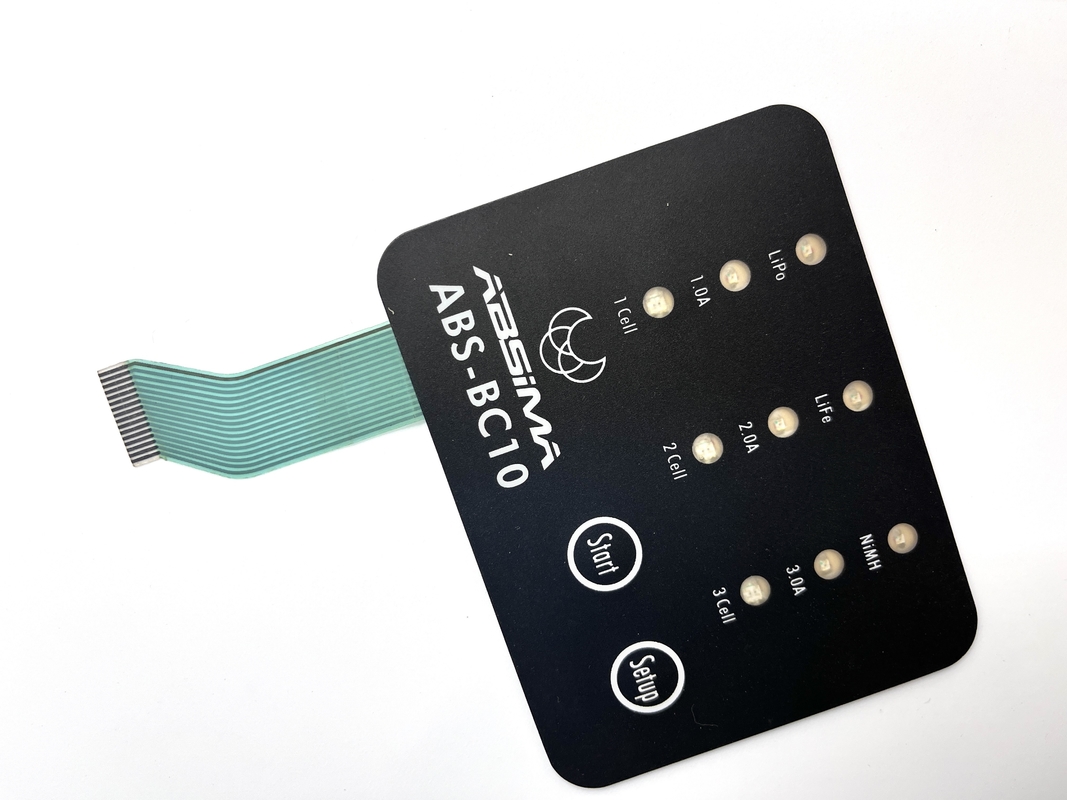

Industrial Membrane Touch Control Panel Long Lasting Custom Membrane Switches
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241102-08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 70000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Button Type: | Metal Dome Button | Adhesive: | 3M Adheisve Or Others |
| Embossing Shape: | Pillow Embosing | Circuit Options: | Silver Circuit |
| Pitch Of Contact: | 2.54MM Or Other Request | Application: | Industry Controller |
| Highlight: | Industrial Membrane Touch Control Panel,Long Lasting Custom Membrane Switches,Long Lasting Membrane Touch Control Panel |
||
Product Description
| Attribute | Value |
|---|---|
| Material | Polyester, Polycarbonate or others |
| Color | Pantone, RAL, CMYK, RGB |
| Button type | Metal dome button |
| Adhesive | 3M adhesive or others |
| Embossing shape | Pillow embossing |
| Circuit options | Silver circuit |
| Pitch of contact | 2.54MM or custom request |
| Application | Industry controller |
Designed for industrial interfaces with customizable layouts and durable construction.
- Fully customizable layout and key labeling
- Spill-resistant membrane design for easy cleaning
- EL backlighting for enhanced visibility
- Durable and responsive input interface
- Compact, space-saving form factor
- Latching mechanism for toggle functionality
- Tactile feedback with noticeable click response
- Industrial control panels and equipment interfaces
- Medical devices and diagnostic equipment
- Home/building automation systems
- Remote controls and specialized handheld devices
- Automotive and transportation applications
- Embedded systems with microcontroller interfaces
| Environmental | |
|---|---|
| Operating Temperature | -40°C to +80°C (-40°to 176°F) |
| Storage Temperature | -40°C to +85°C (-40°to 185°F) |
| Humidity | 40°C, 90% to 95% for 240 hours |
| Vibration | 20G's max. |
| Mechanical | |
| Actuation Force | Non-tactile 60g to 300g (2oz to 10oz) Tactile 150g to 400g (6oz to 14oz) |
| Switch Stroke | Non-tactile 0.1 to 0.5mm Tactile 0.6 to 1.5mm |
| Life Expectancy | Non-tactile >5 million actuations Tactile >1 million actuations |
| Electrical | |
| Operating Voltage | 35 volts maximum |
| Operating Current | 10 micro amps to 100 milliamps, resistive |
| Operating Power | 1 watt maximum |
| Circuit Resistance | 10 ohms to 500 ohms |
| Insulation Resistance | 100M ohms at 100V DC |
| Dielectric Withstand | >250 VRMs (50-60Hz 1 minute) |
| Contact Bounce | ≤ 5 milliseconds |
Overlay material: Polyester or Polycarbonate with various finishes and thicknesses
Embossing: Graphic overlay can be embossed to accommodate metal stainless steel domes
Windows/LCD: Available in printed colors or transparent finishes
Keys: Tactile (metal/poly domes) or non-tactile (printed silver spot)
LEDs: Available in multiple colors including white, green, red, blue, yellow, orange
Cables: Screen printed conductive silver, copper plated, or FPC options
Connectors: ZIF (0.5-1.25mm pitch), female (2.54mm pitch), or male connectors
Standard Tolerances: +/-0.2MM
TaiDa is a professional OEM manufacturer specializing in designing and producing membrane switches, graphic overlays, and adhesive labels with over 15 years of experience. Our products are widely used in industrial, electronic, household appliance, and medical equipment applications.
Factory Strength:
- Factory Area: Over 2000 Square meters
- Employees: >70
- R&D: Continuous quality improvement and technical support
- Manufacturing: Strong productivity with unified processes
- QC/QA: 20% of workforce dedicated to quality control
- Global customer base across USA, EU, UK, and Middle East
