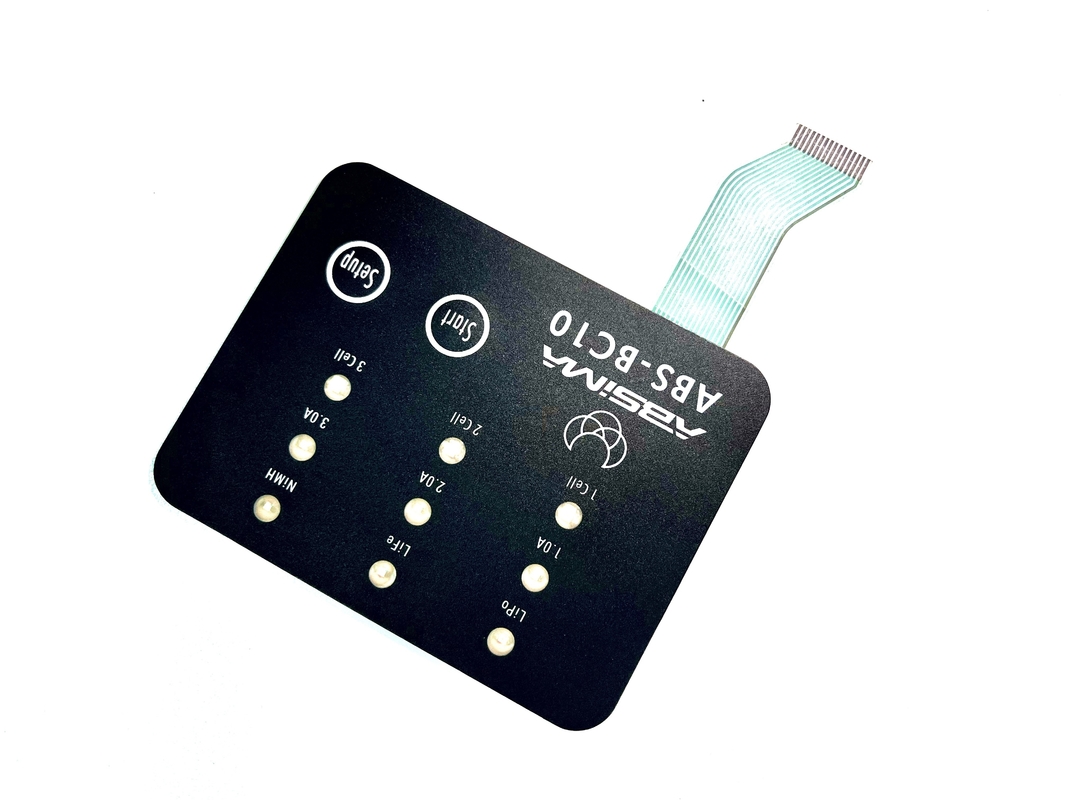

0.3MM Pitch Custom Membrane Keyboard Dome Membrane Switch Power Saving With Silver Paste
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 0611-001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 15000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Other Request | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM,0.3MM Pith | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Poly Dome Or Metal Snap Dome | Size: | Custom Design |
| Operating Temperature: | -20°C To 120°C | Storage Temperature: | -40°C To 85°C |
| Printing Method: | Screen Printing | Total Thickness: | 0.8mm-1.5mm |
| LED Color: | Blue ,white ,red Or Other Request | LED Type: | 0805 ,0603 Or Other |
| LED Window: | Semi-transparent White Or Clear | Connector Type: | ZIF Connector Or Female Connector |
| Highlight: | Versatile Custom Membrane Keyboard,Versatile Dome Membrane Switch,0.3MM Pitch Dome Membrane Switch |
||
Product Description
Versatile Custom Membrane Keyboard Dome Membrane Switch Power Saving With Silver Paste
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or other request |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM or 0.5MM, 0.3MM pitch |
| Adhesive | 3M adhesive or other request |
| Button type | Poly dome or Metal snap dome |
| Size | Custom design |
| Operating Temperature | -20°C to 120°C |
| Storage Temperature | -40°C to 85°C |
| Printing Method | Screen printing |
| Total Thickness | 0.8mm-1.5mm |
| LED color | Blue, white, red or other request |
| LED type | 0805, 0603 or other |
| LED window | Semi-transparent white or clear |
| Connector type | ZIF connector or female connector |
Poly Dome PET Circuit Custom Membrane Switch Keyboard With Silver Paste
A Poly Dome Membrane Switch utilizes polyester (PET) or polycarbonate (PC) material for the dome switch layers, offering durability, tactile feedback, and customization. These switches are widely used in consumer electronics, medical devices, industrial controls, and automotive interfaces.
Membrane Switch Specifications
- Material for front/face overlay:
- Polyester: Highly versatile for embossing, chemical resistant, durable for internal/external use
- Polycarbonate: Wide range of surface finishes, cost-effective for internal/external use
- Embossing: Rim embossing, pillow embossing, dim embossing, pedestal embossing
- Windows for display: Print colors windows, transparent finishes windows
- Keys/buttons: Tactile keys (metal dome or poly dome), Non-tactile (silver printing spot)
- Embedded LEDs: Miniature LED in various colors (white, yellow, orange, green, red)
- Cable: Printed circuit extension for device communication
- Connector types: ZIF connector, female connector, male connector
- EMI/RFI/ESD Shielding: Aluminum foil shielding or clear ITO electrical conductive polyester
- Adhesive: Mostly 3M double-side glue
- Backplate: Aluminum, polycarbonate or acrylic
Membrane Switch Performance Index
| Category | Specification |
|---|---|
| Environmental | Operating Temperature: -40°C to +80°C (-40°to 176°F) |
| Storage Temperature: -40°C to +85°C (-40°to 185°F) | |
| Humidity: 40°C, 90% to 95% for 240 hours | |
| Vibration: 20G's max. | |
| Mechanical | Actuation Force: Non-tactile 60g to 300g (2oz to 10oz) |
| Actuation Force: Tactile 150g to 400g (6oz to 14oz) | |
| Switch Stroke: Non-tactile 0.1 to 0.5mm | |
| Switch Stroke: Tactile 0.6 to 1.5mm | |
| Life Expectancy: Non-tactile >5 million actuations | |
| Life Expectancy: Tactile >1 million actuations | |
| Electrical | Operating Voltage: 35 volts maximum |
| Operating Current: 10 micro amps to 100 milliamps, resistive | |
| Operating Power: 1 watt maximum | |
| Circuit Resistance: 10 ohms to 500 ohms | |
| Insulation Resistance: 100M ohms at 100V DC | |
| Dielectric Withstand: >250 VRMs (50-60Hz 1 minute) | |
| Contact Bounce: ≤ 5 milliseconds |
How to Order
- Send us drawings, specifications, or photos of your product
- Confirm order details and approve artwork before sampling
- Confirm sample before mass production
- Standard sample lead time: 7 business days
- Mass production lead time: 7-10 business days (varies by order quantity)
Our Services
- 24-hour response to inquiries
- Custom design available (OEM/ODM welcome)
- Professional English support from experienced staff
- Unique solutions from trained engineers
- High quality products with testing and short lead times
Want to Know more details about this product
