High Durability Membrane Keypad Overlay Dust Resistant For Industry Equipment
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241104-05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 85000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Button Type: | Metal Dome Button | Adhesive: | 3M Adheisve Or Others |
| Embossing Shape: | Pillow Embosing | Circuit Options: | Silver Circuit |
| Application: | Industry Controller | Total Thickness: | 1.05MM Or Other Reuqest |
| Highlight: | High Durability Membrane Keypad Overlay,High Durability flexible membrane keypad,Dust Resistant Membrane Keypad Overlay |
||
Product Description
High Durability Membrane Keypad Overlay Dust Resistant For Industry Equipment
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or others |
| Color | Pantone, RAL CMYK, RGB |
| Button type | Metal dome button |
| Adhesive | 3M adhesive or others |
| Embossing shape | Pillow embossing |
| Circuit options | Silver circuit |
| Application | Industry controller |
| Total thickness | 1.05MM or other request |
Free Proof EL Membrane Keypad Overlay For Industry Equipment
Key Features
- Protective Layer: Acts as a protective barrier against moisture, dust, and mechanical wear.
- Tactile Features: Includes raised or indented areas to provide tactile feedback when buttons are pressed.
- Custom Graphics: Printed graphics, symbols, and text guide user operation.
- Material Options: Made from durable polyester or polycarbonate substrates.
Performance Benefits
- Exceptional durability for high-use industrial environments
- Water and dust resistant protection for underlying electronics
- Customizable colors and finishes for branding requirements
- Long-lasting graphics through UV or screen printing techniques
Technical Specifications
| Category | Specification |
|---|---|
| Environmental | |
| Operating Temperature | -40°C to +80°C (-40°to 176°F) |
| Storage Temperature | -40°C to +85°C (-40°to 185°F) |
| Humidity | 40°C, 90% to 95% for 240 hours |
| Vibration | 20G's max. |
| Mechanical | |
| Actuation Force (Non-tactile) | 60g to 300g (2oz to 10oz) |
| Actuation Force (Tactile) | 150g to 400g (6oz to 14oz) |
| Switch Stroke (Non-tactile) | 0.1 to 0.5mm |
| Life Expectancy (Non-tactile) | >5 million actuations |
| Life Expectancy (Tactile) | >1 million actuations |

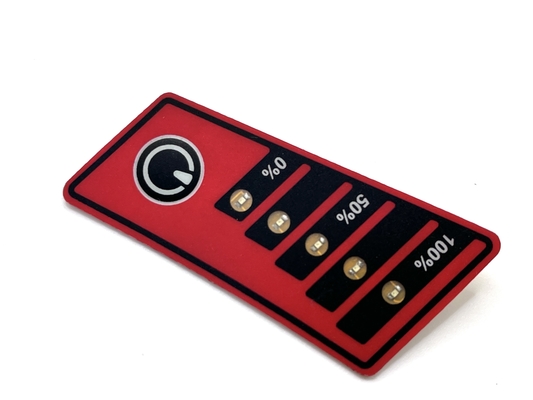

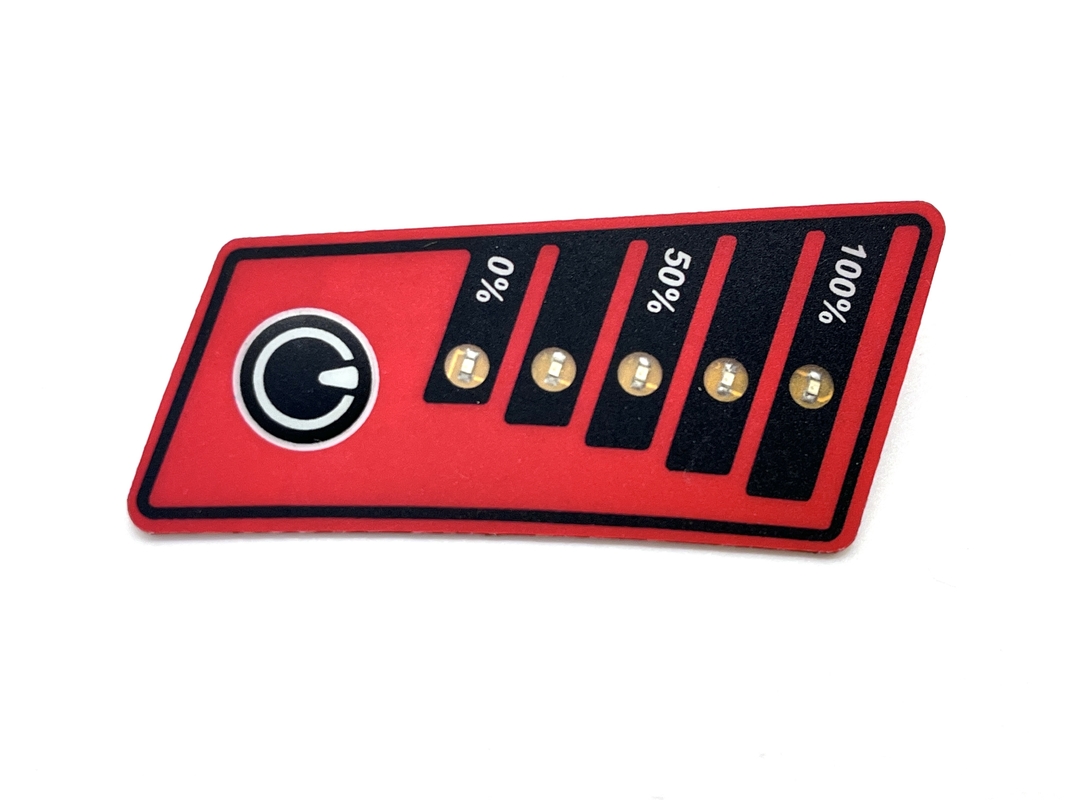

Product Images
About ShenZhen TaiDa Membrane Switch Co.,LTD
Taida is an OEM professional specializing in designing and manufacturing membrane switches, graphic overlays and adhesive stickers/labels with more than 15 years experience in Shenzhen, China. Our products are widely used in industrial, electronics, household appliance, and medical equipment applications.
Company Capabilities
- Factory Area: Over 2000 Square meters
- Employees: >70 skilled workers
- R&D Department for continuous quality improvement and technical support
- Strong production capacity with unified processes for fast delivery
- 20% of workforce dedicated to QC/QA for guaranteed quality
- Efficient dispatch department for accurate and speedy shipping
Want to Know more details about this product
