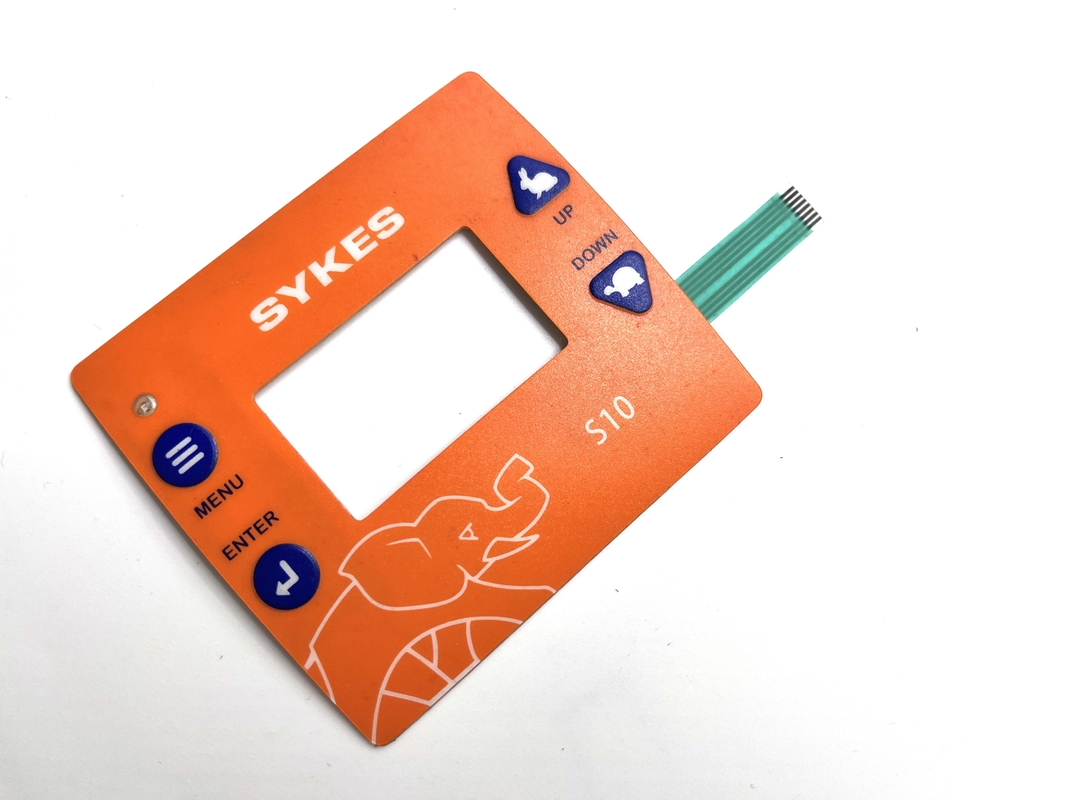

Chemicals Resistant Backlit Membrane Switch Waterproof With Molex 0.5MM Pitch
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241106-14 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 50000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate ,silicone Or Other | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Pitch Of Connect: | 0.3MM ,0.5MM，1.0MM，1.25MM，or 2.54MM | Adhesive: | 3M,Sony Adheisve Or Others |
| Button Type: | Embossing Metal Dome | Connector Type: | ZIF Connector |
| Embossing Shape: | Rain Embosing | Circuit Options: | Copper Circuit |
| LED Type: | 0603or0805 | LED Color: | Red-green Double Color LED |
| Highlight: | Chemicals Resistant Backlit Membrane Switch,Chemicals Resistant membrane keypad custom,Waterproof Backlit Membrane Switch |
||
Product Description
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate, silicone or other |
| Color | Pantone, RAL CMYK, RGB |
| Pitch of Connect | 0.3MM, 0.5MM, 1.0MM, 1.25MM, or 2.54MM |
| Adhesive | 3M, Sony adhesive or others |
| Button type | Embossing metal dome |
| Connector type | ZIF connector |
| Embossing shape | Rain embossing |
| Circuit options | Copper circuit |
| LED type | 0603 or 0805 |
| LED color | Red-green double color LED |
Texture Mylar Side LED Push Button On Off Switch With Molex 0.5MM Pitch
Polyester: Highly versatile for embossing, highly resistant to chemicals, better durability, suitable for internal and external use
Polycarbonate: Wide range of surface finishes and thicknesses, more cost-effective, suitable for internal and external use
Graphic overlay or up circuit can be embossed to insert metal stainless steel domes for good tactile feedback when pressed. Leave space for mechanical keys and provide tactile indications.
- Pedestal embossing
- Rim embossing
- Pillow embossing
- Dim embossing
- Printed colors windows (red, black, etc.)
- Transparent finishes windows
- Tactile Keys: Switch metal domes or Poly domes, Metal dome with different diameter and pressure kinds
- Non-tactile keys: Printed silver spot on the circuit
Miniature LEDs, LED colors: white, green, red, blue, yellow, orange and others
A: To offer the exact price, we need to know the material, specification including thickness, size, whether it includes adhesive, number of colors for printings, contact details, quantity required, size and shape with artwork files.
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
A: After the engineering drawing is confirmed, the sample will be completed in 5 days, and after the sample is confirmed, the mass goods will be completed in 10 days. The specific delivery time depends on the items and the quantity of your order.
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
