EL Backlight Membrane Keypad Membrane Keypad Custom Highly Effective For Electric Fan
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 0703-010 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-15 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 10000 +pcs +a Month |
|
Detail Information |
|||
| Material: | Polyester Or Polycarbonate Or Others | Color: | Pantone, RAL CMYK ,RGB |
|---|---|---|---|
| Pitch Of Connect: | 2.54MM , | Adhesive: | 3M467 Adheisve Or Others |
| Button Type: | Metal Dome | Connector Type: | Female Connector |
| PN: | Membrane Switch ,Membrane Keypad ,keyboard ,overlay | Circuit Options: | Silver Flex Circuit |
| Application: | Consumer Electronics And Appliances | Backlight Type: | EL |
| Highlight: | EL Backlight Membrane Keypad,EL Membrane Keypad Custom,High Effective Backlight Membrane Keypad |
||
Product Description
EL Backlight Membrane Keypad for Electric Fan
Product Specifications
| Attribute | Value |
|---|---|
| Material | Polyester or Polycarbonate or others |
| Color | Pantone, RAL CMYK, RGB |
| Pitch of Connect | 2.54MM |
| Adhesive | 3M467 adhesive or others |
| Button type | Metal dome |
| Connector type | Female connector |
| PN | Membrane switch, Membrane keypad, keyboard, overlay |
| Circuit options | Silver flex circuit |
| Application | Consumer electronics and appliances |
| Backlight type | EL |
Product Features
- Uniform Backlighting: EL layer provides even illumination across the entire surface
- Wide Viewing Angle: Easily visible from different perspectives
- Energy Efficient: Low power consumption ideal for battery-powered devices
- Thin & Flexible: Can be integrated into curved surfaces or compact designs
- Long Lifespan: Operational life exceeding 10,000 hours
- Customizable: Available in various sizes, shapes, colors, and lighting effects
Technical Specifications
Operating voltage: 35V DC
Operating current: 100mA 1W
Contact resistance: < 100 Ohms
Open circuit resistance: ≥ 10MΩ at 100V
Operating temperature: -20°C to +80°C
Storage temperature: -40°C to +80°C
Life expectancy: Flat type ≥5,000,000 cycles, Tactile type ≥1,000,000 cycles

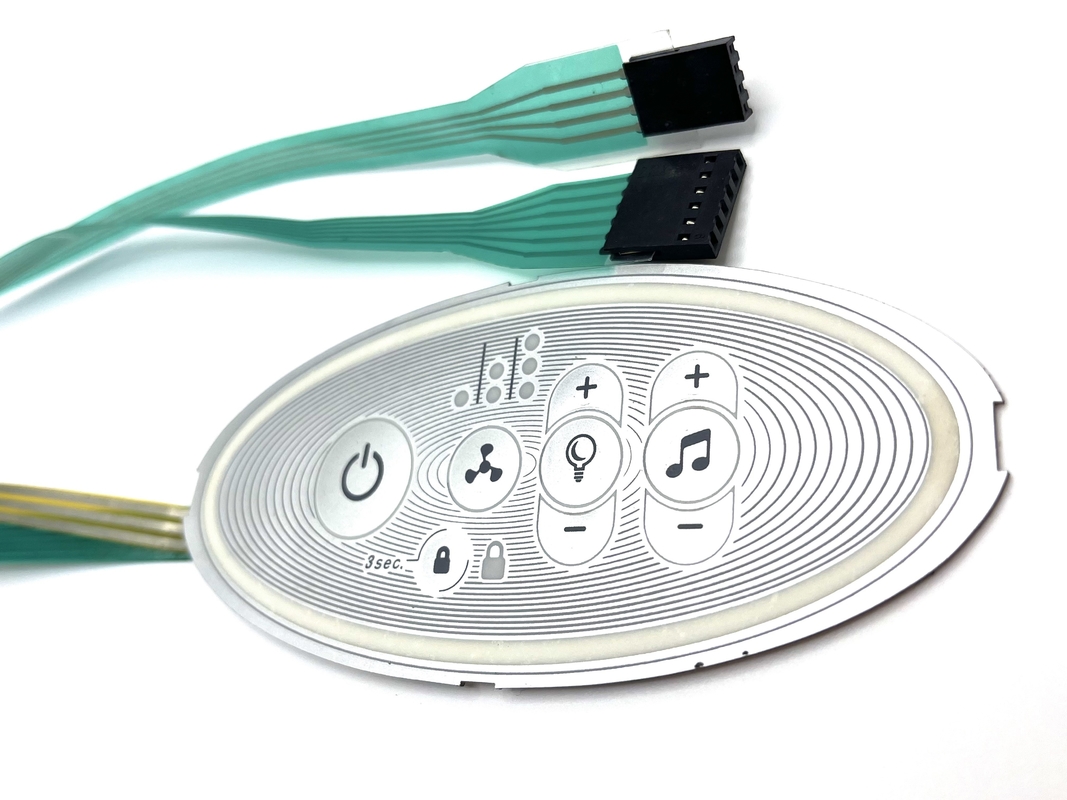

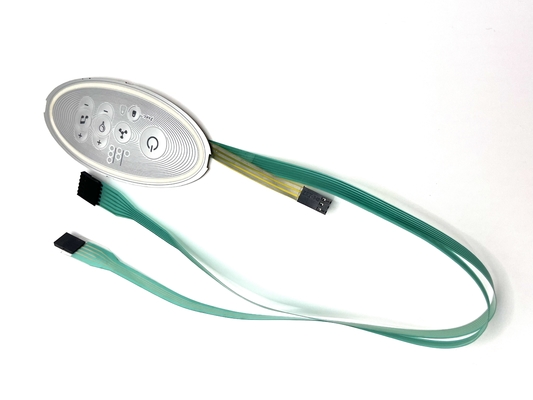

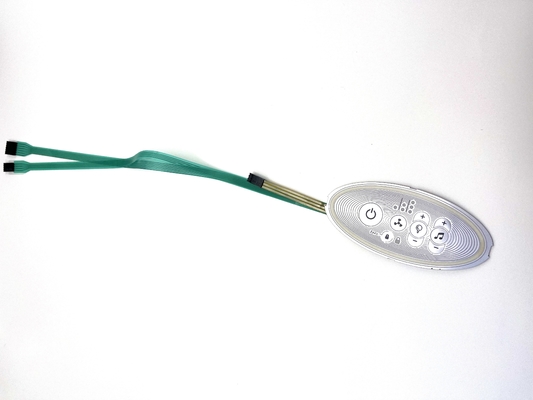

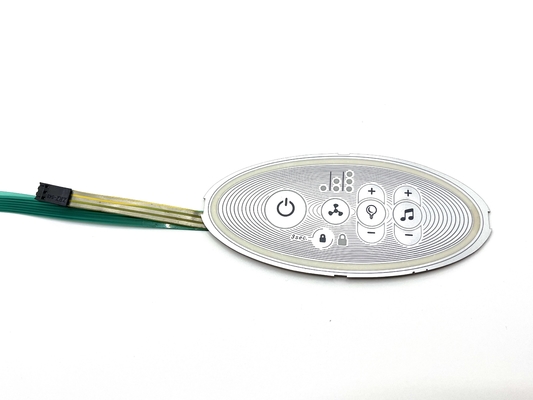

Product Images
Ordering Process
- Send drawings, specifications or photos of your product
- Confirm order details and approve artwork before sampling
- Sample lead time: 4-5 business days
- Mass production lead time: 7-10 business days
Our Services
- 24-hour response to inquiries
- Custom design available (OEM/ODM welcome)
- Professional English support
- Unique solutions from experienced engineers
- Quality testing and short lead times
- Custom shapes, sizes, colors and technologies
- Pre-production samples provided
