Waterproof Backlit Membrane Switch 1.0mm Thickness 3M Rear Adhesive With Gradient Printing
Product Details:
| Place of Origin: | DongGuan of China |
| Brand Name: | Taida |
| Certification: | ISO9001,SGS,ROHS,REACH,UL |
| Model Number: | 20241102-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 0.2-2 USD |
| Packaging Details: | PE bags first and Foam in Carton and etc |
| Delivery Time: | 4-5 days for Samples making ;10-13 days for Batch goods |
| Payment Terms: | Western Union, T/T,PAYPAL |
| Supply Ability: | 9000 +pcs +a Month |
|
Detail Information |
|||
| Material: | PET Or PC | Color: | Pantone, RAL CMYK ,RGB Or Samples |
|---|---|---|---|
| Pitch Of Connect: | 1.0MM ,1.25MM .2.54MM Or 0.5MM | Adhesive: | 3M Adheisve Or Other Reuqest |
| Button Type: | Metal Dome Or Embossing Dome | Size: | Custom Design |
| Operating Temperature: | -20°C To 70°C | Life Expectancy: | 1 Million To 5 Million Cycles |
| Storage Temperature: | -40°C To 85°C | Total Thickness: | 0.8mm-1.0mm |
| Highlight: | Waterproof membrane switch overlay,1.0mm Thickness Backlit Membrane Switch,1.0mm Thickness membrane switch overlay |
||
Product Description

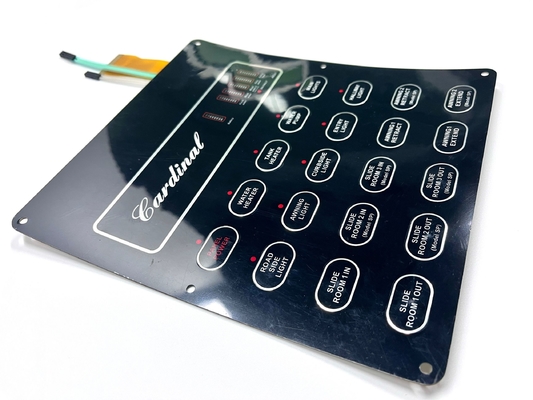

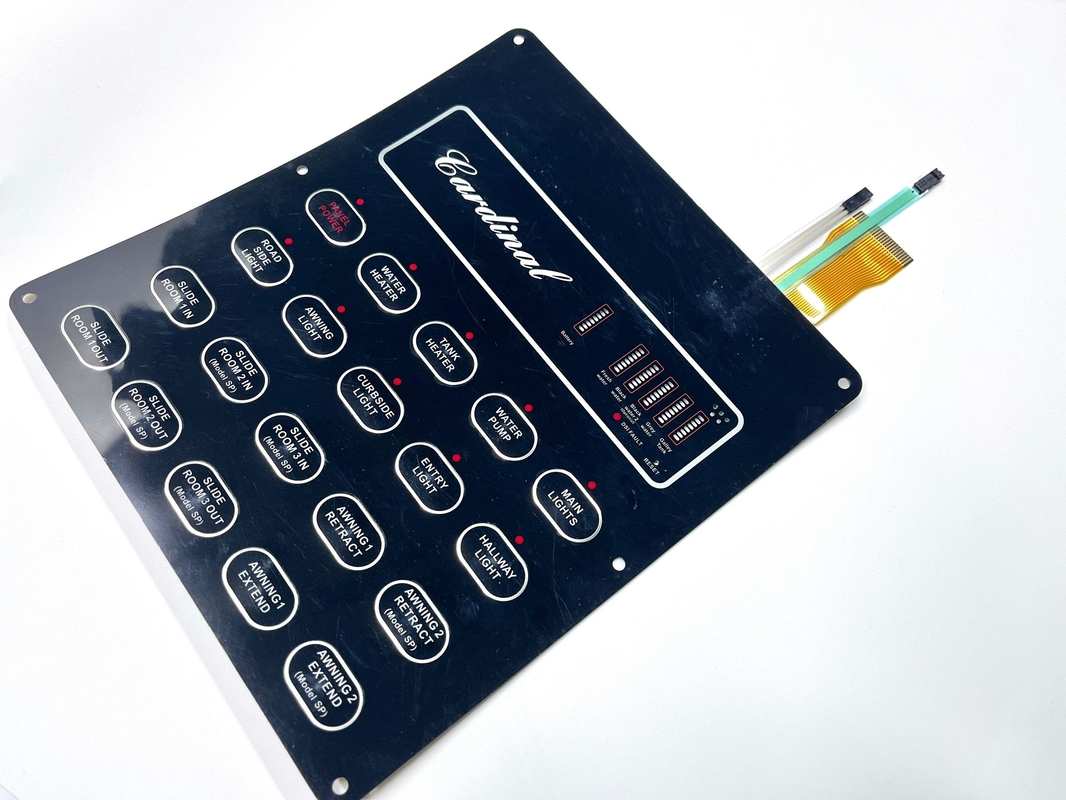

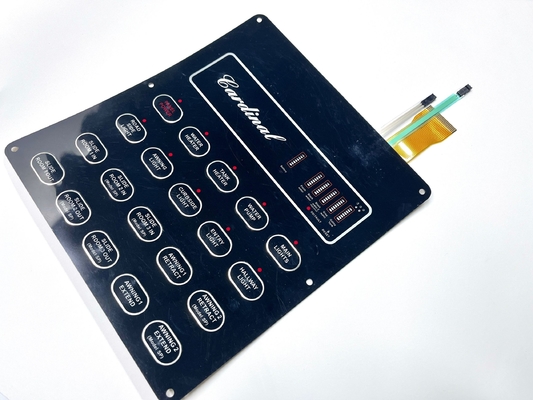

Waterproof Backlit Membrane Switch 3M Rear Adhesive With Gradient Printing
Product Specifications
| Attribute | Value |
|---|---|
| Material | PET or PC |
| Color | Pantone, RAL CMYK, RGB or samples |
| Pitch of Connect | 1.0MM, 1.25MM, 2.54MM or 0.5MM |
| Adhesive | 3M adhesive or other request |
| Button type | Metal dome or Embossing dome |
| Size | Custom design |
| Operating Temperature | -20°C to 70°C |
| Life Expectancy | 1 million to 5 million cycles |
| Storage Temperature | -40°C to 85°C |
| Total Thickness | 0.8mm-1.0mm |
Product Description
The 3M Rear Adhesive Waterproof Backlit Membrane Switch with Gradient Printing features a unique printing technique that creates a visual gradient effect on the keypad surface. This innovative design combines functionality with aesthetic appeal for enhanced user interfaces.
Key Features
- Illumination: Provides visibility in low-light environments while enhancing aesthetic appeal
- Durability: Resistant to dust, moisture, and various environmental conditions
- Construction: Multi-layer design including printed graphic layer, spacer layer, and circuit layer
- Customization: Available in various colors, sizes, and designs with optional logo printing
Performance Specifications
| Category | Parameter | Specification |
|---|---|---|
| Environmental | Operating Temperature | -40°C to +80°C (-40°to 176°F) |
| Storage Temperature | -40°C to +85°C (-40°to 185°F) | |
| Humidity | 40°C, 90% to 95% for 240 hours | |
| Vibration | 20G's max. | |
| Mechanical | Actuation Force (Non-tactile) | 60g to 300g (2oz to 10oz) |
| Actuation Force (Tactile) | 150g to 400g (6oz to 14oz) | |
| Switch Stroke | Non-tactile 0.1 to 0.5mm / Tactile 0.6 to 1.5mm | |
| Life Expectancy | Non-tactile >5 million / Tactile >1 million actuations | |
| Electrical | Operating Voltage | 35 volts maximum |
| Operating Current | 10 micro amps to 100 milliamps, resistive | |
| Operating Power | 1 watt maximum | |
| Circuit Resistance | 10 ohms to 500 ohms | |
| Insulation Resistance | 100M ohms at 100V DC | |
| Dielectric Withstand | >250 VRMs (50-60Hz 1 minute) | |
| Contact Bounce | ≤ 5 milliseconds |
Ordering Process
- Submit your product drawing, specifications, or photos
- Confirm order details and approve artwork before sampling
- Arrange payment - artwork confirmation within 3 days, samples in 7 business days
- Mass production typically completes in 7-10 business days
Our Services
- 24-hour response to inquiries
- Custom design services (OEM/ODM available)
- Professional English support from experienced staff
- Engineer-developed unique solutions
- Quality-tested products with short lead times
